BRD全程综合水处理系统

产品概述
全程综合水处理器是我公司针对现今的水系统中普遍存在有结垢、腐蚀、污泥、微生物繁殖等问题,参考国际和国内类似设备基础上而自主硏发的升级换代设备。该设备集防锈除锈、防垢除垢、杀菌灭藻、超净过滤功能为一体,能够有效的解决管路、换热设备腐蚀、结垢、菌藻繁殖、污泥滋生等问题,广泛应用于空调制冷系统、工业冷却水系统、热交换系统、生活水系统等用水系统。

产品特点
1)电极工作电压<36V,使用中安全可靠。
2)过滤元件采用不锈钢楔形网,过滤精度高,流通量大。
3)电极材料采用特殊材料制作,具有损耗小、耐腐蚀、放电速度快等优点。
4)减少系统检修、清洗时间和费用。
5)一般系统中可以代替传统的化学清洗,具有节能环保等优点。

技术参数
工作电压：AC380V/50Hz(电动型），AC220V/50Hz(标准型）
缓蚀率：≤0.092mm/年
阻垢、除垢率：≥95%

杀菌率：≥95%
灭藻率：≥95%
进水水质：总硬度(以CaCO3,计)≤800mg/L;适用水温0℃~+70℃
工作压力：0.6、1.0、1.6MPa;相对湿度<95%。环境温度-5℃~+40℃
过滤精度：200-3500μm(电动型),1000-3500μm(标准型）
连接方式：法兰连接

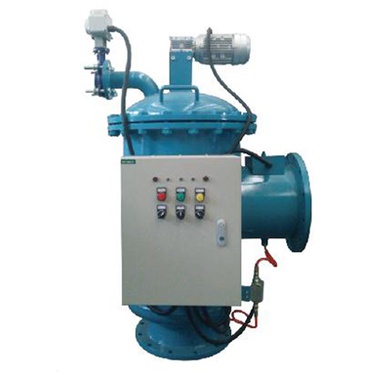

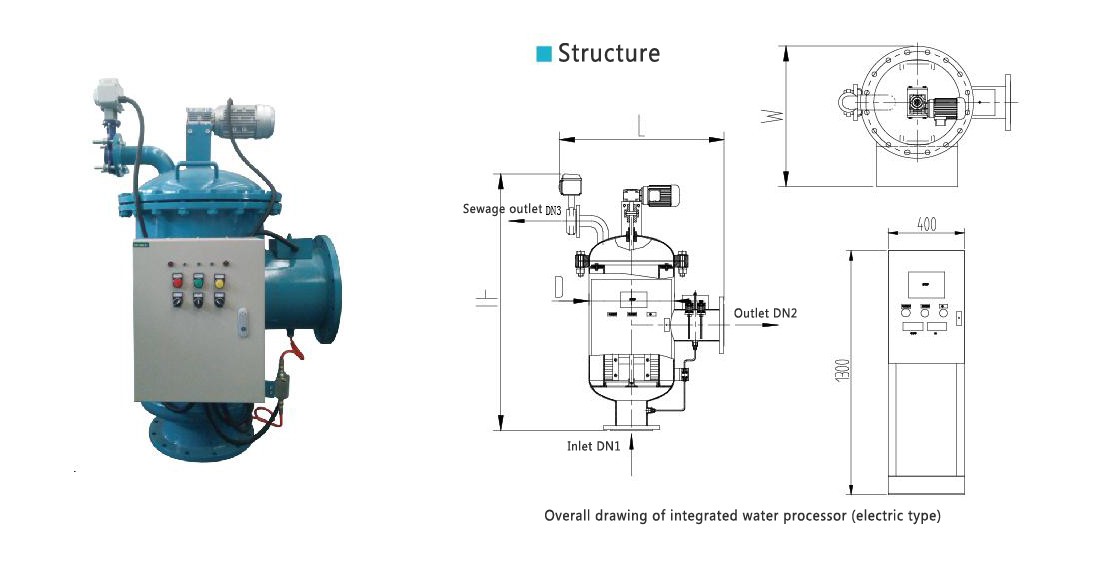

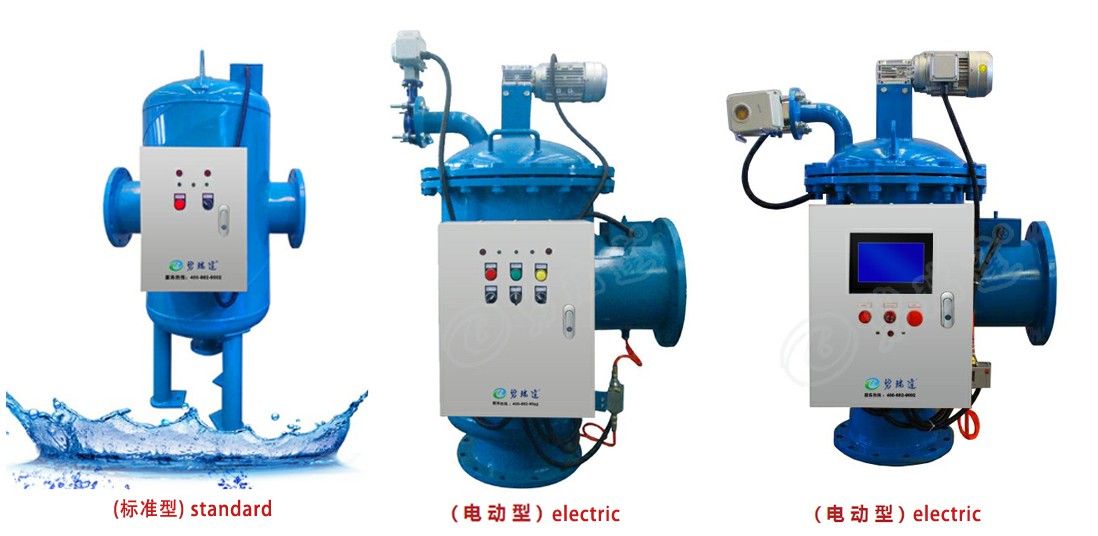

BRD comprehensive water treatment system

Product overview
The whole process integrated water treatment unit is an upgraded equipment developed by our company independently on the basis of similar equipment at home and abroad, aiming at the problems of scaling, corrosion, sludge, microbial propagation, etc. in the current water system. The equipment integrates the functions of rust prevention and scale removal, sterilization and algae removal, super clean filtration, which can effectively solve the problems of pipeline, heat exchange equipment corrosion, scaling, bacteria and algae reproduction, sludge breeding and so on. It is widely used in air conditioning and refrigeration system, industrial cooling water system, heat exchange system, domestic water system and other water systems.

Product characteristics
1) The working voltage of electrode is less than 36V, which is safe and reliable in use.
2) The filter element adopts stainless steel wedge screen, which has high filtering precision and large flow.
3) The electrode material is made of special material, which has the advantages of small loss, corrosion resistance and fast discharge speed.
4) Reduce the time and cost of system maintenance and cleaning.
5) The general system can replace the traditional chemical cleaning and has the advantages of energy saving and environmental protection.

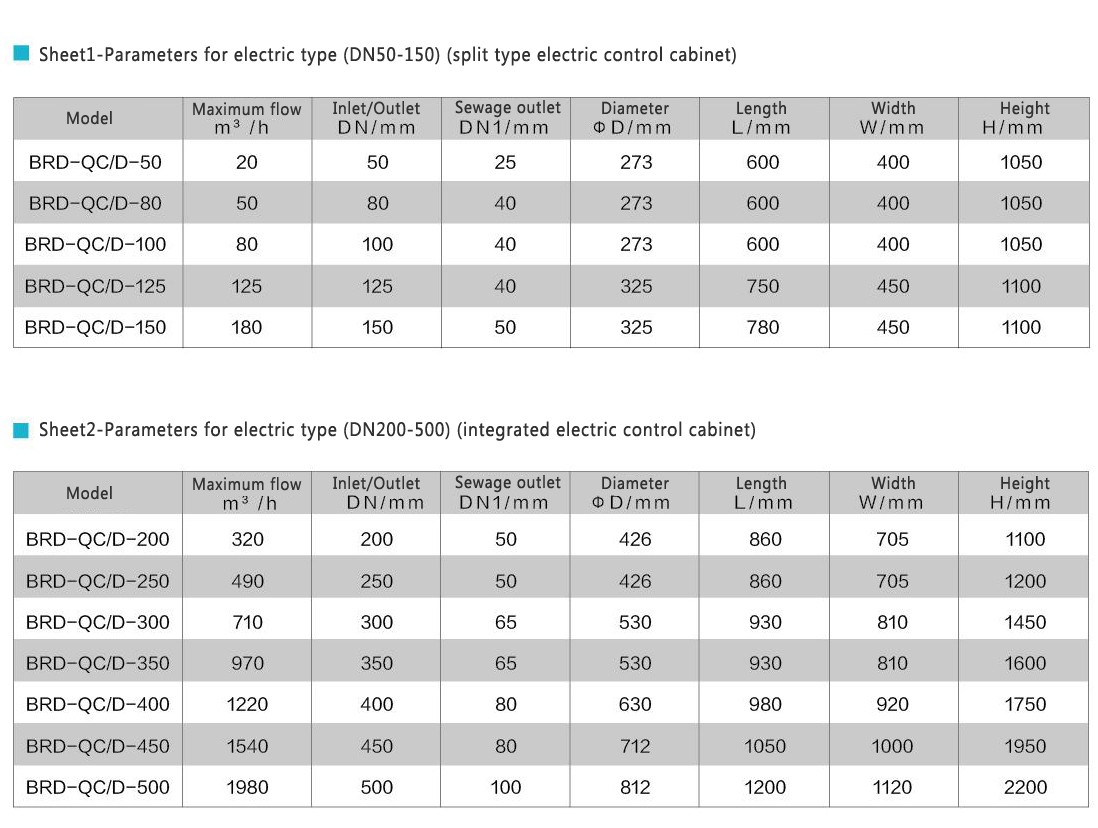

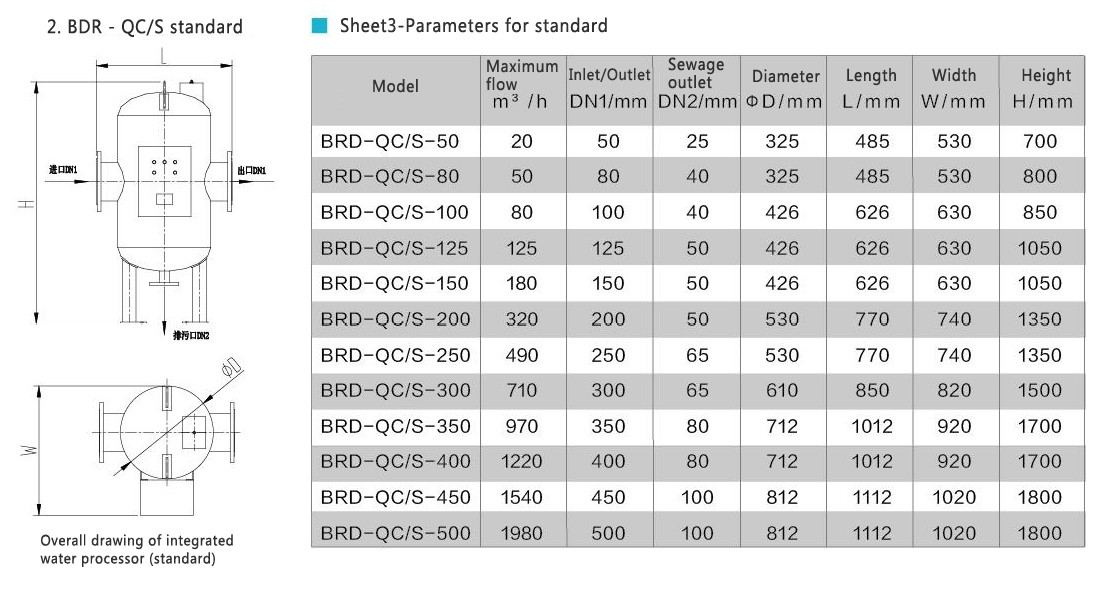

Technical parameter
Working voltage: AC380V / 50Hz (electric type), AC220V / 50Hz (standard type)
Corrosion inhibition rate: ≤ 0.092mm/year
Scale inhibition and descaling rate: ≥ 95%
Sterilization rate: ≥ 95%
Algaecide rate: ≥ 95%
Inlet water quality: total hardness (calculated by CaCO3) ≤ 800mg / L; applicable water temperature: 0 ℃ ~ + 70 ℃
Working pressure: 0.6, 1.0, 1.6Mpa; relative humidity < 95%. Ambient temperature - 5 ℃ ~ + 40 ℃
Filtering accuracy: 200-3500 μ m (electric type), 1000-3500 μ m (standard type)
Connection mode: flange connection
