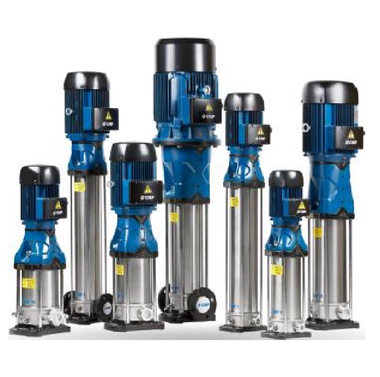

CDM,CDMF High efficient Light Vertical Multistage Centrifugal Pump


Product overview
CDM / CDMF series is a new generation of high efficiency non self priming vertical multi-stage centrifugal pump independently developed in accordance with Europe standard. The product adopts a new industrial design, with an energy efficiency index of 0.7 or higher. It has the characteristics of energy saving, low noise, environmental protection, compact structure, beautiful appearance, light weight, convenient use and maintenance, high reliability, etc.


The motor is totally enclosed, air-cooled two pole standard motor
Protection grade: IP55
Insulation class: F
Standard voltage: 50Hz: 1x220-230 / 240V


Operating conditions
Delivery medium: thin, clean, non-flammable and explosive, and does not contain solid particles, fibers or liquids with physical and chemical properties similar to water.
Liquid temperature: normal temperature - 15 ° to 70c
Hot water type - 15 ° to 120c
Ambient temperature: max. + 40C
Altitude: up to 1000M

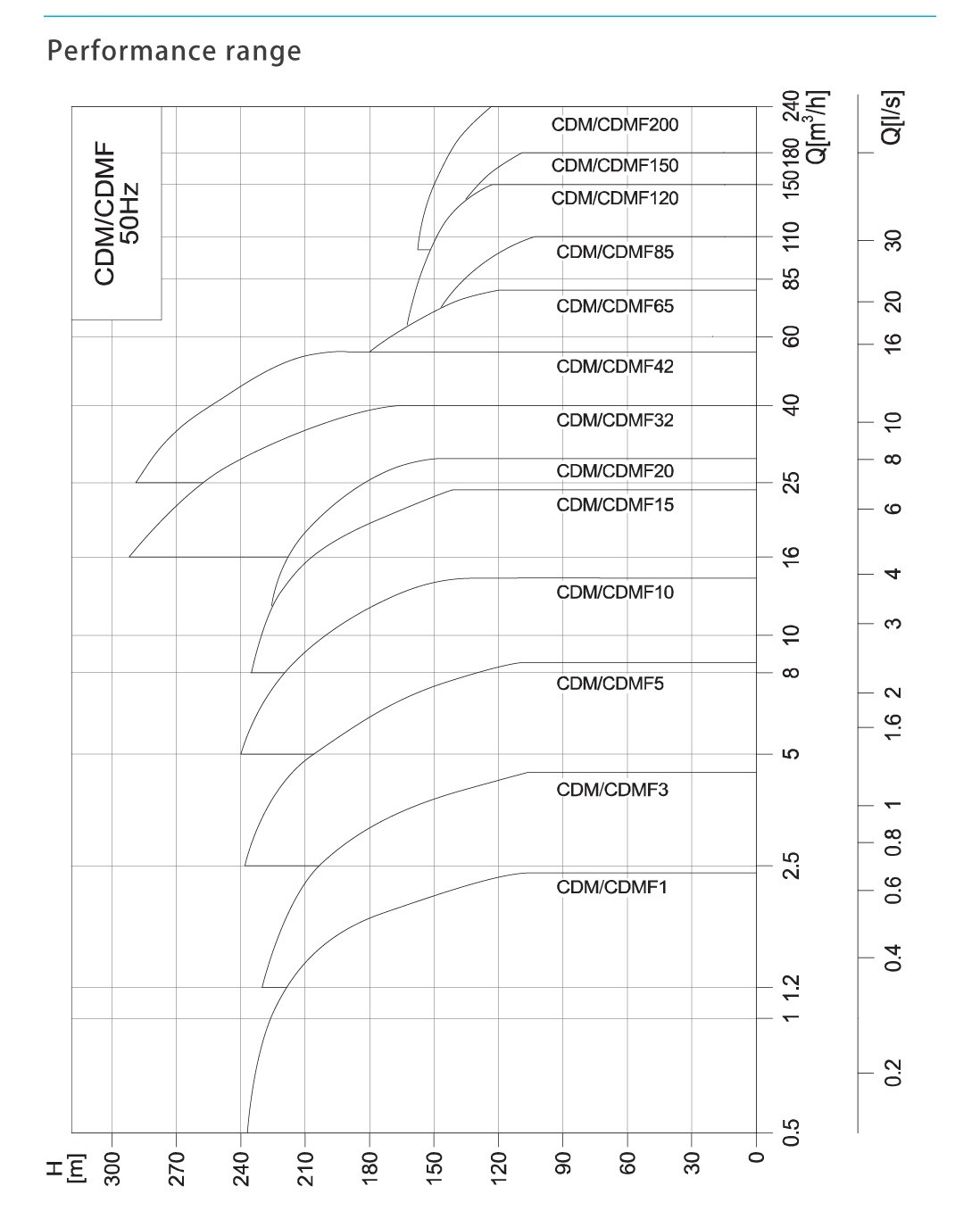

Flow rate: 0.5m³/h~130m³/h
Head: 4m~305m³/h
Voltage: 220V/380V
Material: Stainless steel
Eficiency I: ME>0.7

Water treatment systems
HVAC systems
Industrial liquid transportation
Industrial boosting
Water supply systems
