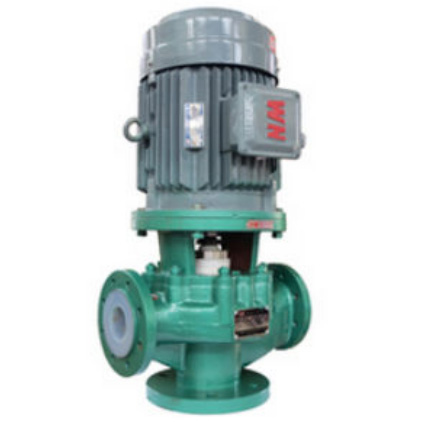

GF type lining fluoride pipeline pump



Product Overview

GF type lining fluoride pipeline pump combined with market demand, with reference to international standards and national standards, design and manufacture of flow components for fluorine plastic, independent research and development patent lining technology, provide superior corrosion resistance,wide range of corrosion resistance, high strength, durable, can replace 316L stainless steel, titanium alloy and other precious metals, and the advantages of high efficiency and energy saving, low noise, reliable in performance.This product is widely used in the following processes: pickling process, painting process, electrolyte transport in the smelting of non-ferrous metals, oxygen water, wastewater treatment and acid addition in the ion membrane caustic soda project;Applicable temperature: -20-150℃.



Product features and scope of use:

1. GF type fluorine lined pipeline pump is of vertical structure with the same inlet and outlet diameter and is located on the same center line.

2, GF profile fluorine pipeline pump impeller directly installed on the motor shaft and reasonable configuration, can effectively balance the radial and axial load generated by the operation of the pump, so as to ensure the operation balance of the pump, vibration, noise is very low;

3, GF type fluorine lined pipeline pump shaft seal adopts the general type and granule-resistant mechanical seal, wear and corrosion resistance, can effectively increase the service life of mechanical seal;

4. Gf-type fluorine-lined pipeline pump can be operated in series or parallel mode according to the requirements of flow rate and head;

5, GF profile fluorine pipeline pump is suitable for -40℃~+150℃ temperature conditions, long-term transport any concentration of acid, alkali liquid, oxidant and other corrosive liquids;

6, GF type fluorine lined pipeline pump inlet pressure≤0.3MPa, pump system pressure is pump suction pressure + pump head≤1. 6MPa, when ordering, please indicate the system working pressure;

7. GF type fluorine lined pipeline pump is widely used in oil, chemical industry, metallurgy, electric power, papermaking, flue gas desulfurization, dust removal, food pharmaceutical and synthetic fiber sectors.





Equipped with secondary motor n = 2900r / min   Pressure:1.6MPa

No. model capacity
m'/h
head
m
efficiency
%
NPSH
m
Inlet×outlet
mm
power
kw
weight
kg
1 40GF-20 8 20 31 2.5 40 ×40 1.5 50
*6.3 20 30
10 18 32
2 40GF-32 8 32 31 3.5 40X 40 3 82
*6.3 32 30
10 30 32
3 50GF-20 7 22 40 3.5 50X50 2.2 84
*12.5 20 45
15 16 42
4 SOGF-32 7 33 33 3.5 50X50 4 88
*12.5 32 45
15 30 45
5 SOGF-50 7 51 28 3.5 50 ×50 7.5 135
*12.5 50 40
15 49 48
6 SOGF-80 7 80 20 5 50X50 11 180
*12.s 80 30
15 77 38
7 65GF-20 15 22 47 3.5 65X65 3 83
*25 20 52
35 16 57
8 65GF-32 15 33 38 3.5 65×65 5.5 118
*25 32 47
35 30 57
9 65GF-50 15 52 30 3.5 65X65 11 178
*25 50 45
35 48 42
10 65GF-60 15 82 30 3.5 65X65 18.5 230
*25 80 42
35 72 44
11 BOGF-20 35 22 42 4 80×80 5.5 126
*50 20 55
60 18 80
12 BOGF-32 35 33 45 4 80×80 11 180
*50 32 50
60 27 39
13 BOGF-50 35 52 43 4 80X80 18.5 220
*50 50 55
60 45 43
14 100GF-20 65 22 57 4.5 100×100 11 192
*100 20 80
120 17 63
15 100GF-32 65 35 57 5 100×100 18.5 240
*100 32 62
110 28 65
16 100GF-50 65 51 54 5 100X100 30 340
*100 50 60
120 43 48
