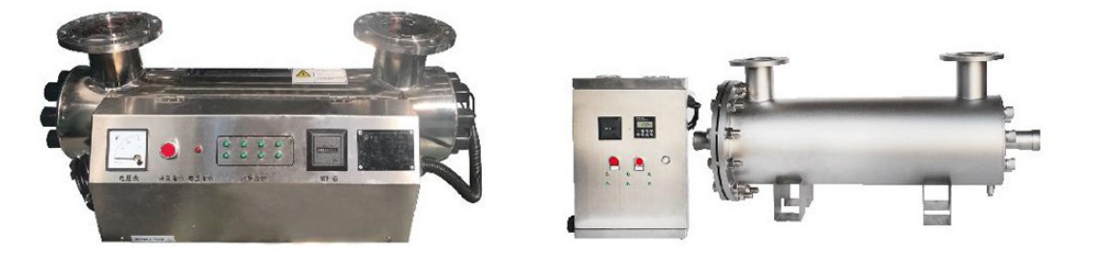

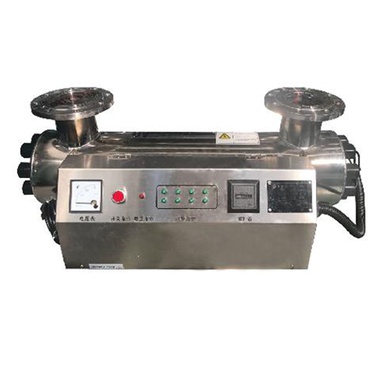

UV sterilizer（standard type, electric cleaning type）

产品特点：
1)高效率杀菌:紫外线对细菌、病毒的杀菌使用一般在一至二秒即可达到99%-99.9%的杀菌率
2)高效杀菌广谱性:紫外线杀菌的广谱性是最高的,它对几乎所有的细菌、病毒都能高效率杀灭。
3)无二次污染:紫外线杀菌不加入任何化学药剂,因此它不会对水体和周围环境产生二次污染,不改变水中任何成分。
4)运行安全、可靠:传统的消毒技术如采用氯化物或臭氧,其消毒剂本身就是属于剧毒、易燃的物质,而紫外线消毒系统不存在这样的安全隐患。
5)运行维护费用低:紫外线杀菌设备占地小,构筑物要求简单,因此总投资较少,在运行方面成本也较低,在千吨水处理量水平,它的成本只是氯消毒的1/2。

Features:
1) High-efficiency sterilization: The sterilization of bacteria and viruses by ultraviolet rays can generally achieve a sterilization rate of 99% -99.9% in one to two seconds.
2) Broad spectrum of high-efficiency sterilization: The broad spectrum of UV sterilization is the highest, it can kill almost all bacteria and viruses with high efficiency.
3) No secondary pollution: UV sterilization does not add any chemicals, so it will not cause secondary pollution to the water body and the surrounding environment, and will not change any components in the water.
4) Safe and reliable operation: Traditional disinfection technologies such as chloride or ozone, the disinfectants themselves are highly toxic and flammable, and the UV disinfection system does not have such a hidden danger.
5) Low operation and maintenance costs: The UV sterilization equipment occupies a small area and requires simple structures, so the total investment is small, and the cost of operation is also low. At the level of 1,000 tons of water treatment, its cost is only 1/2 of that of chlorine .

技术参数：
1.环境条件
1)环境温度:0℃~+50℃,室内无腐蚀性气体;
2)相对湿度:不大于93%(温度25℃时)
3)设备要安装在室内防止阳光暴晒和雨淋;
4)房间通风、干燥,地板清洁、不起灰尘。
注意:粉尘和腐蚀性气体会对电气元件造成坏,影响使用效果和寿命。

Environmental conditions：
1) Ambient temperature: 0 ℃ ~ + 50 ℃, no corrosive gas in the room;
2) Relative humidity: not more than 93% (at a temperature of 25 ° C)
3) The equipment should be installed indoors to prevent sunlight and rain;
4) The room is ventilated and dry, the floor is clean and dust-free.
Note: Dust and corrosive gas will cause damage to electrical components, affecting the use effect and life.

2.水质条件
1)水温:5℃-60℃
2)色度:≤15度
3)浊度:≤5NTU
4)含铁量:≤0.3mg/L
5)含锰量:≤0.05mgL
6)硬度:120mg/L(CaCO3)
7)细菌总数:≤2000个/mL

2. Water quality conditions
1) Water temperature: 5 ℃ -60 ℃
2) Chroma: ≤15 degrees
3) Turbidity: ≤5NTU
4) Iron content: ≤0.3mg / L
5) Manganese content: ≤0.05mgL
6) Hardness: 120mg / L (CaCO3)
7) Total bacteria: ≤2000 / mL

3.工作条件
1)电压:220V±20V,50Hz
2)设备承压:≤0.6MPa
3)清洗间隔时间:标准型7d每次(可调),气动清洗型24h每次(可调),每次17min(可调)。
4)连接方式:法兰(可选)。

3. Working conditions
1) Voltage: 220V±20V, 50Hz
2) Equipment pressure: ≤0.6MPa
3) Cleaning interval time: standard 7d each time (adjustable), pneumatic cleaning type 24h each time (adjustable), 17min (adjustable) each time.
4) Connection method: flange (optional).
