Description
Performance parameter

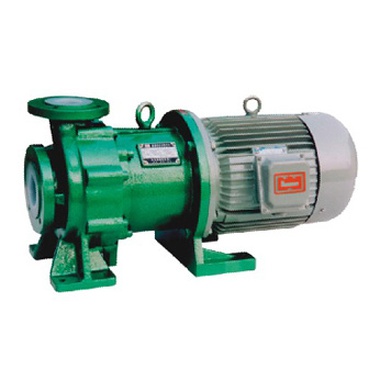

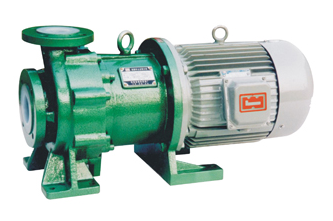

IMD fluoroplastic alloy magnetic pump

Features:

IMD series magnetic pump, flow: 1~160m cubed /h; head 17~62m, suitable for conveying strong corrosion, flammable, explosive, toxic, volatile chemical medium.

Applicable temperature: -20℃~100℃

Core parameter:

1. Patent name: magnetic pump with combination isolation sleeve

Patent no. : ZL200820038728.3

2. patent name: new fluoroplastic alloy magnetic

Patent no. : ZL200820038729.8

Design features:

No drip

IMD series magnetic drive pump, cancel the shaft seal, use magnetic coupling indirect drive, completely eliminate the dripping leakage phenomenon.

No eddy current heat:

IMD series magnetic drive pump adopts the latest material to make the isolation sleeve with high strength mechanics, which completely eliminates the phenomenon of magnetic eddy current of the general magnetic pump.

Easy to remove:

IMD series magnetic drive pump adopts unique back pull structure, one person can easily carry out internal maintenance and parts replacement, no need to remove the pipeline, greatly facilitate the daily maintenance and repair work.

Compact structure:

The magnetic coupling is directly mounted on the motor shaft with no rolling bearing loss, high efficiency and low noise.Pump machine occupies small space, saving space, easy installation.

Equipped with second-level motor: n = 2900r / min Pressure: 1.6 MPa * Refers to standard parameters

Model	Flow m³/h	Head M	Efficiency %	NPSH m	Inlet×Outlet mm	Motor power Km	Weight Kg
IMD40-25-130FA	4	21	25	3	40×25	3	85
	*6	20	32
	8	18	33
IMD40-25-140FA	4	27	25	3	40×25	3	85
	*6	26	32
	8	24	33
IMD40-25-150FA	4	31	25	3	40×25	3	85
	*6	30	32
	8	28	33
IMD40-25-160FA	4	35	25	3	40×25	3	85
	*6	34	31
	8	32	32
IMD40-25-165FA	4	37	25	3	40×25	3	85
	*6	36	29
	8	34	30
IMD40-25-170FA	4	40	25	3	40×25	4	90
	*6	39	28
	8	36	29
IMD40-25-185F	0.7	39	5	3	40×25	3	85
	*1	39	7
	2	38	28
IMD40-25-230FA	4	62	15	3	40×25	7.5	170
	*6	60	20
	10	57	32
IMD50-40-140F	8	28	27	3.5	50×40	5.5	140
	*15	26	40
	20	23	41
IMD50-40-150F	8	32	25	3.5	50×40	5.5	140
	*15	30	38
	20	27	39
IMD50-40-160F	8	37	23	3.5	50×40	5.5	140
	*15	36	36
	20	33	39
IMD50-40-165F	8	40	28	3.5	50×40	5.5	140
	*15	39	40
	20	36	43
IMD50-32-200F	7	52	20	3.5	50×32	7.5	170 with seat
	*12.5	50	31
	15	47	38
IMD50-32-195F	5	51	25	3.5	50×32	7.5	170 with seat
	*7	50	28
	10	48	33
IMD65-50-120F	20	21	40	4	65×50	5.5	135
	*30	15	50
	35	12	50
IMD65-50-130F	20	20	45	4	65×50	5.5	135
	*30	19	55
	35	17	56
IMD65-50-165F	20	35	40	4	65×50	7.5	145
	*30	33	54
	35	30	52
IMD65-40-200F	15	52	25	4	65×40	11	300 with seat
	*25	50	37
	35	45	42
IMD80-65-120F	35	19	35	4	80×65	11	300 with seat
	*60	17	51
	70	13	48
IMD80-65-140F	35	28	35	4	80×65	11	300 with seat
	*60	25	46
	70	22	46
IMD80-50-200F	35	52	50	4	80×50	18.5	335 with seat
	*50	50	55
	60	45	56
IMD100-80-125F	70	22	60	4.5	100×80	15	330 with seat
	*100	20	65
	120	17	64
IMD100-80-160F	60	34	50	5	100×80	30	435 with seat
	*100	32	60
	120	27	62
IMD100-80-180F	60	42	50	5	100×80	30	435 with seat
	*100	40	60
	120	35	62
IMD125-100-160F	80	22	50	6	125×100	30	660 with seat
	*120	20	56
	140	15	56
IMD125-100-200F	100	40	50	6	125×100	37	680 with seat
	120	37	56
	*160	32	56

Note: Try to choose the same or similar parameters as this table.If it is not within
the scope of this table, our factory can achieve it through technical improvement.

〖WOLONG〗IMD fluoroplastic alloy magnetic pump
