Description
Performance parameter

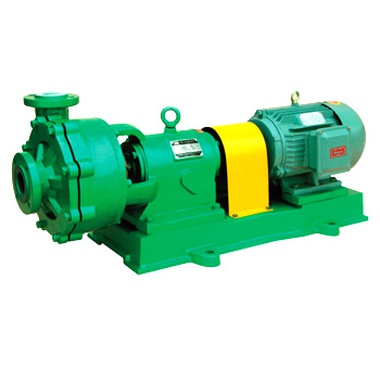

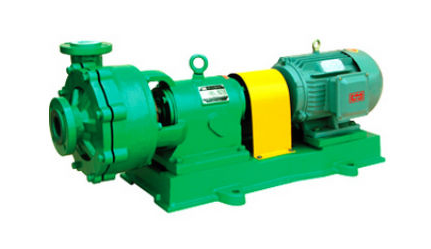

UHB-ZK Mortar Pump

Product Usage

This product is widely used in: acid, alkali, salt, oil, food and beverage, wine, organic solvents and other liquids, especially for conveying fine granular corrosive liquid.

Service temperature: -20℃ ~ 80℃

Design Features

Wear resistant and corrosion

Uhb-zk series mortar pump is a cantilever single-stage and single-suction centrifugal pump. Its flow parts are made of ultra-high molecular weight polyethylene with steel lining. It has strong corrosion resistance, excellent wear resistance and creep resistance (resistance to environmental stress cracking).

Multi-function

A pump can adapt to a variety of different conditions.For example, it can not only transport acid, alkali, clean liquid or slurry, but also transport all kinds of corrosive pulp in smelting industry, as well as all kinds of dilute acid in sulfuric acid industry and sewage in environmental protection industry.

A variety of sealing

This series of pumps adopts various sealing methods: k-type power seal, single-end mechanical seal and double-end mechanical seal, which can be selected according to specific working conditions.

Equipped with second-level motor: n = 2900r / min Pressure: 1.6 MPa * Refers to standard parameters

Model	Flow m³/h	Head M	Efficiency %	NPSH m	Inlet×Outlet mm	Motor power Km	Weight Kg
UHB-ZK40/10-20	5	22	18	3	40×32	3	100
	*10	20	28
	12	18	30
UHB-ZK40/10-30	5	32	18	3	40×32	4	105
	*10	30	36
	12	27	30
UHB-ZK50/20-20	12	22	30	3	50×40	4	130
	*20	20	37
	25	17	40
UHB-ZK50/20-30	12	32	30	3	50×40	5.5	150
	*20	30	36.5
	25	28	40
UHB-ZK65/30-20	20	13	34	3.5	65×50	5.5	150
	*30	20	36
	35	18	40
UHB-ZK65/30-30	20	32	34	3.5	65×50	7.5	150
	*30	30	37
	35	18	40
UHB-ZK65/30-50	20	52	30	3.5	65×50	15	280
	*30	50	35.5
	35	47	38
UHB-ZK80/45-35	30	37	33	3.5	80×65	15	260
	*45	35	40
	55	30	36
UHB-ZK80/50-20	35	22	32	4	80×65	11	250
	*50	20	39
	60	17	30
UHB-ZK80/50-30	35	32	33	3.5	80×65	15	250
	*50	30	40
	60	25	36
UHB-ZK80/50-50	35	52	33	4	80×65	18.5	280
	*50	50	41
	60	45	38
UHB-ZK100/60-35	50	37	38	4	100×80	18.5	345
	*60	35	40
	80	30	42
UHB-ZK100/60-50	50	52	37	4	100×80	22	380
	*60	50	40
	70	45	42
UHB-ZK100/100-40	70	45	41	4	100×80	30	440
	*100	40	40
	110	35	33
UHB-ZK125/100-28	70	32	35	5	125×100	30	400
	*140	28	46
	150	22	35
UHB-ZK150/250-30	120	34	45	4	150×125	45	840
	*250	30	55
	300	26	50
UHB-ZK200/400-25	240	28	55	5.5	200×150	75	1180
	*400	25	64
	500	20	60
UHB-ZK200/400-32	240	39	55	5.5	200×150	75	1180
	*400	32	62
	500	26	60

Model	Flow m³/h	Head M	Efficiency %	NPSH m	Inlet×Outlet mm	Motor power Km	Weight Kg
UHB-ZK250/600-32	360	35	71	6	250×200	110	1680
	*600	32
	720	28
UHB-ZK250/600-50	360	53	69	6	250×200	160
	*600	50
	720	46
UHB-ZK250/800-32	480	35	71	7.4	250×200	132	1680
	*800	32
	960	28
UHB-ZK250/800-50	480	53	70	7.6	250×200	200
	*800	50
	960	46
UHB-ZK300/1000-32	620	35	72	8.5	300×250	160
	*1000	32
	1200	28
UHB-ZK300/1000-50	620	53	71	8.5	300×250	250
	*1000	50
	1200	46
UHB-ZK300/1200-32	760	35	73	9.5	300×250	200
	*1200	32
	1440	28
UHB-ZK300/1200-50	760	53	72	9.6	300×250	315
	*1200	50
	1440	46
UHB-ZK350/1400-32	920	35	72	6.1	350×300	250
	*1400	32
	1680	27
UHB-ZK350/1400-50	920	53	70	6.1	350×300	355
	*1400	50
	1680	45
UHB-ZK350/1600-32	1100	35	72	6.7	350×350	250
	*1600	32
	1920	27
UHB-ZK350/1600-50	1100	53	71	6.7	350×350	400
	*1600	50
	1920	45

Note: Try to choose the same or similar parameters as this table.If it is not within
the scope of this table, our factory can achieve it through technical improvement.
