航丰致力于冷却塔的开发、设计、制造、销售、服务已超过15年,凭借强大的自身实力、可靠的产品质量和完善的售后服务,在业界赢得了良好的口碑,成为冷却行业中的“中国制造”翘楚。以客户角度出发,结合多年的行业经验,向市场推出众多选项、灵活配置可满足不同要求的 GENTEC系列冷却塔,该系列冷却塔采用行业独一无二高强度耐腐蚀拉挤玻璃钢材质作为设备标准配置,拉高行业整体标准。拥有业界领先热力性能实验室 。性能测试合趔试最大冷却功率为2,500,000kcal/h,5℃温差时最大设计流量为500t/h。可测试开式冷却塔、闭式冷却塔、蒸发冷等不同冷却设备。并为不同型的冷却塔设置了多个测试台位,可同时安装多台冷却进行性能测试。测试系统热力性能测试计算软件包含国标测试标准和CTISTD-201测试标准。主要功能包括参数设置、数据采集,热性能计算、结果显示、测试报表打印、数据存储等功能。结构紧凑，场地布置更灵活，选择范围大，单台处理量60-666m3/h，换热效率高，全系列CTI认证，防结冰设计，适用冬季运行，众多材质，可选满足各种运行环境。

Hanf has been committed to the development, design, manufacturing, sales and service of cooling tower for more than 15 years. With its strong strength, reliable product quality and perfect after-sales service, it has won good reputation in the industry and become the "made in China" leader in the cooling industry.

From the perspective of customers and based on years of industry experience,GENTEC series cooling towers with many options and flexible configuration can meet different requirements are introduced to the market.This series of cooling towers adopt the unique high-strength corrosion-resistant pultruded FRP material as the equipment standard configuration, which enhances the overall industry standard.

Has the leading thermal performance laboratory in the industry.

The maximum cooling power of performance test is 2500000kcal / h, and the maximum design flow is 500t / h when the temperature difference is 5 ℃.

Open cooling tower, closed cooling tower, evaporation cooling and other different cooling equipment can be tested.And we set up a number of test station for different types of cooling tower, it can be installed more than one cooling performance test at the same time.

The thermal performance test and calculation software of the test system includes the national standard test standard and ctistd-201 test standard. The main functions include parameter setting, data collection, thermal performance calculation, result display, test report printing, data storage and other functions.

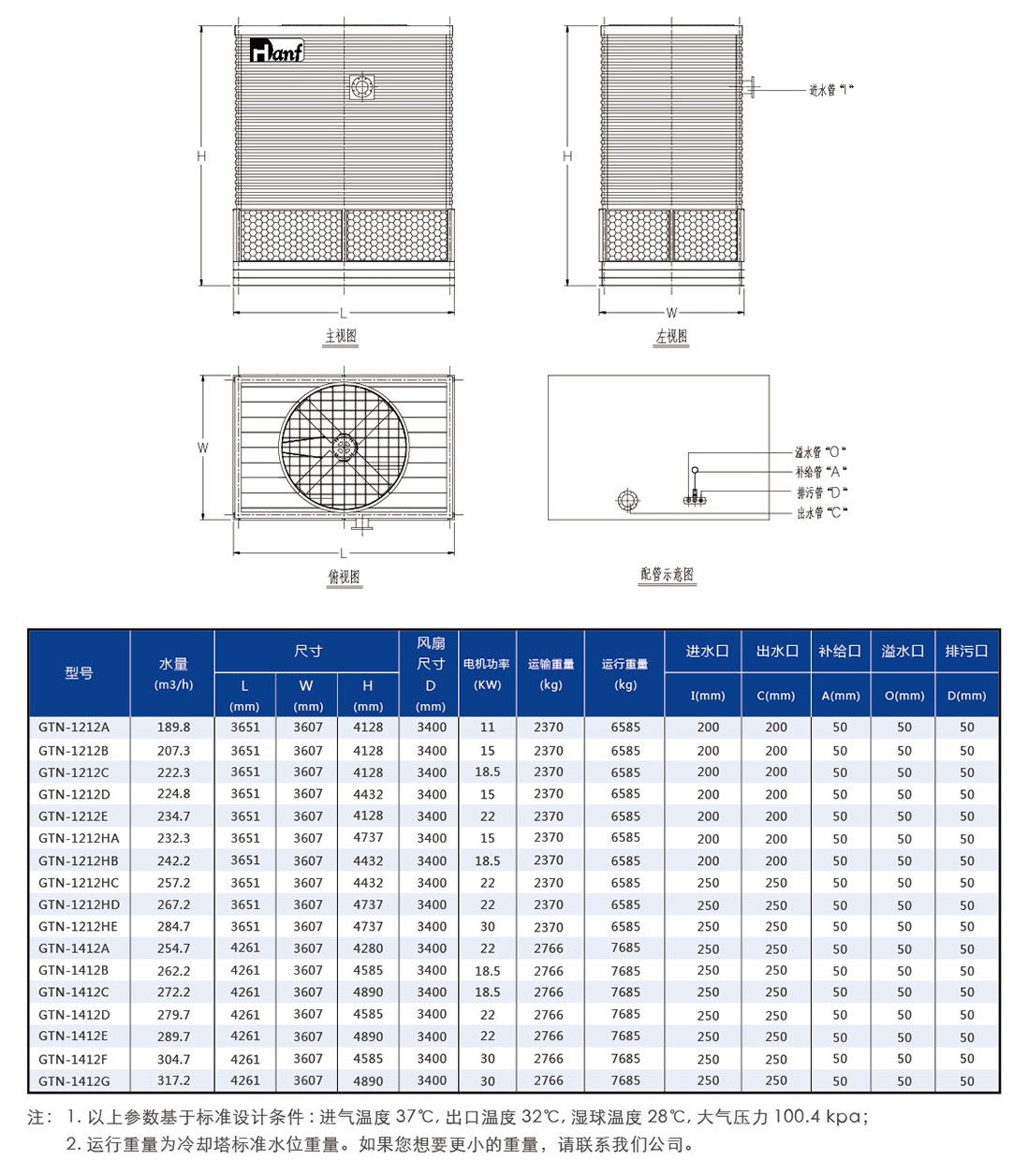

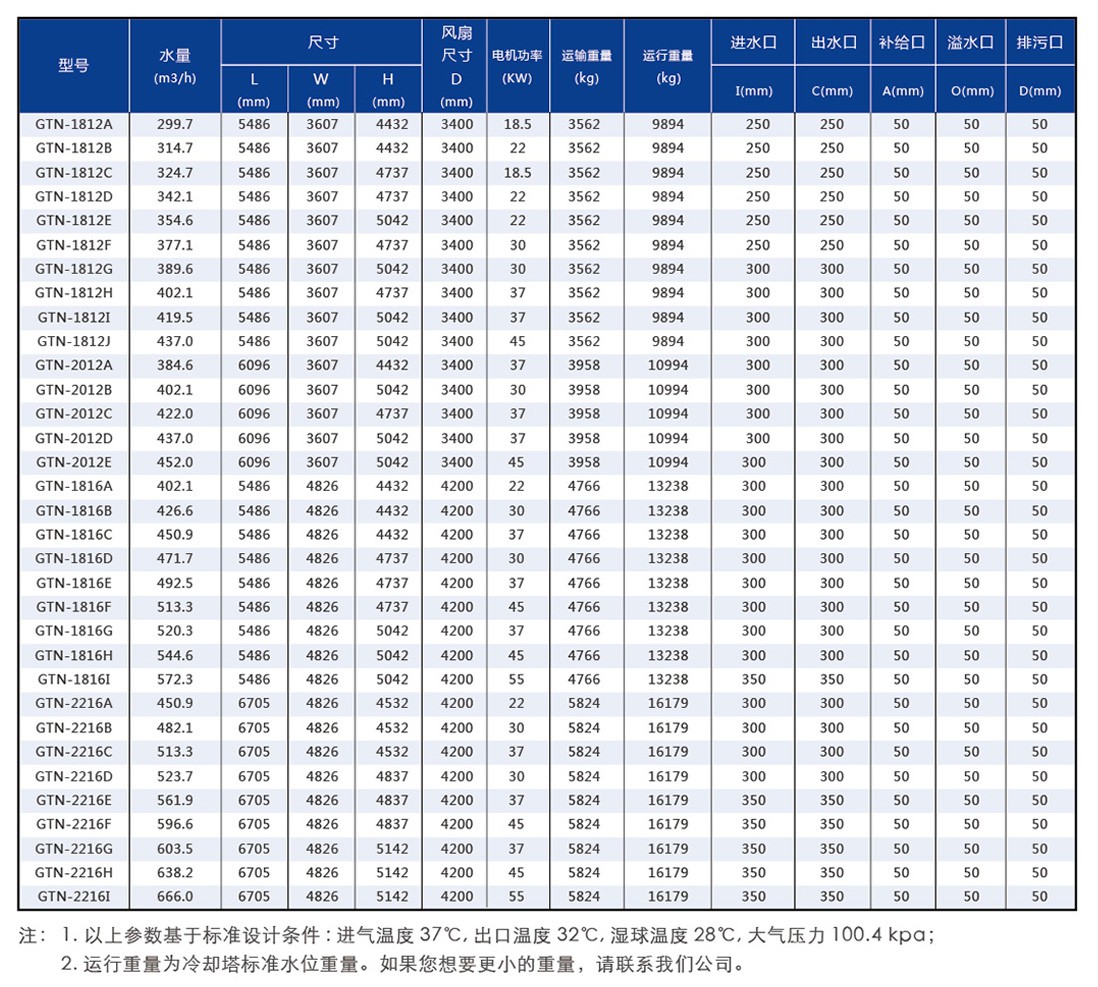

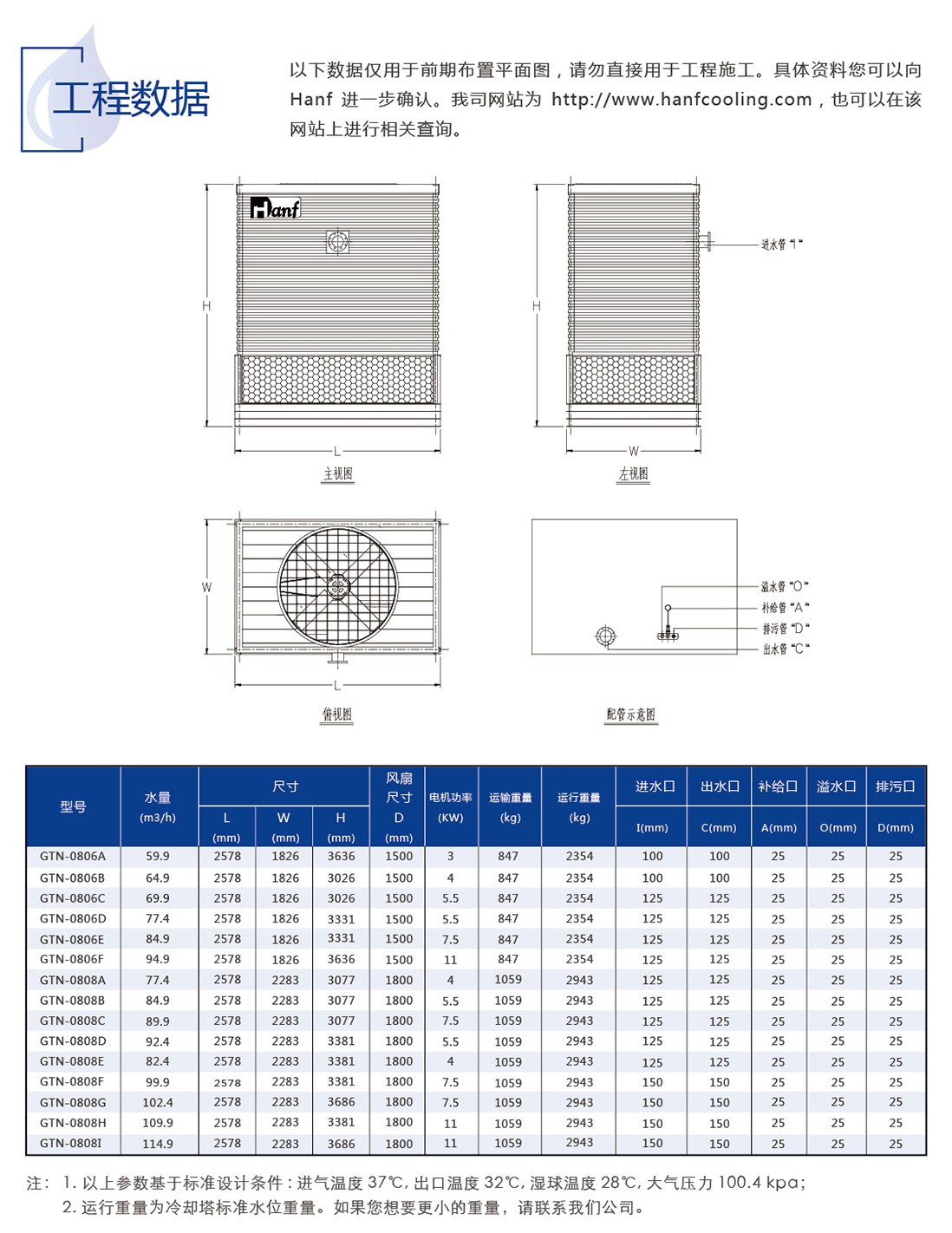

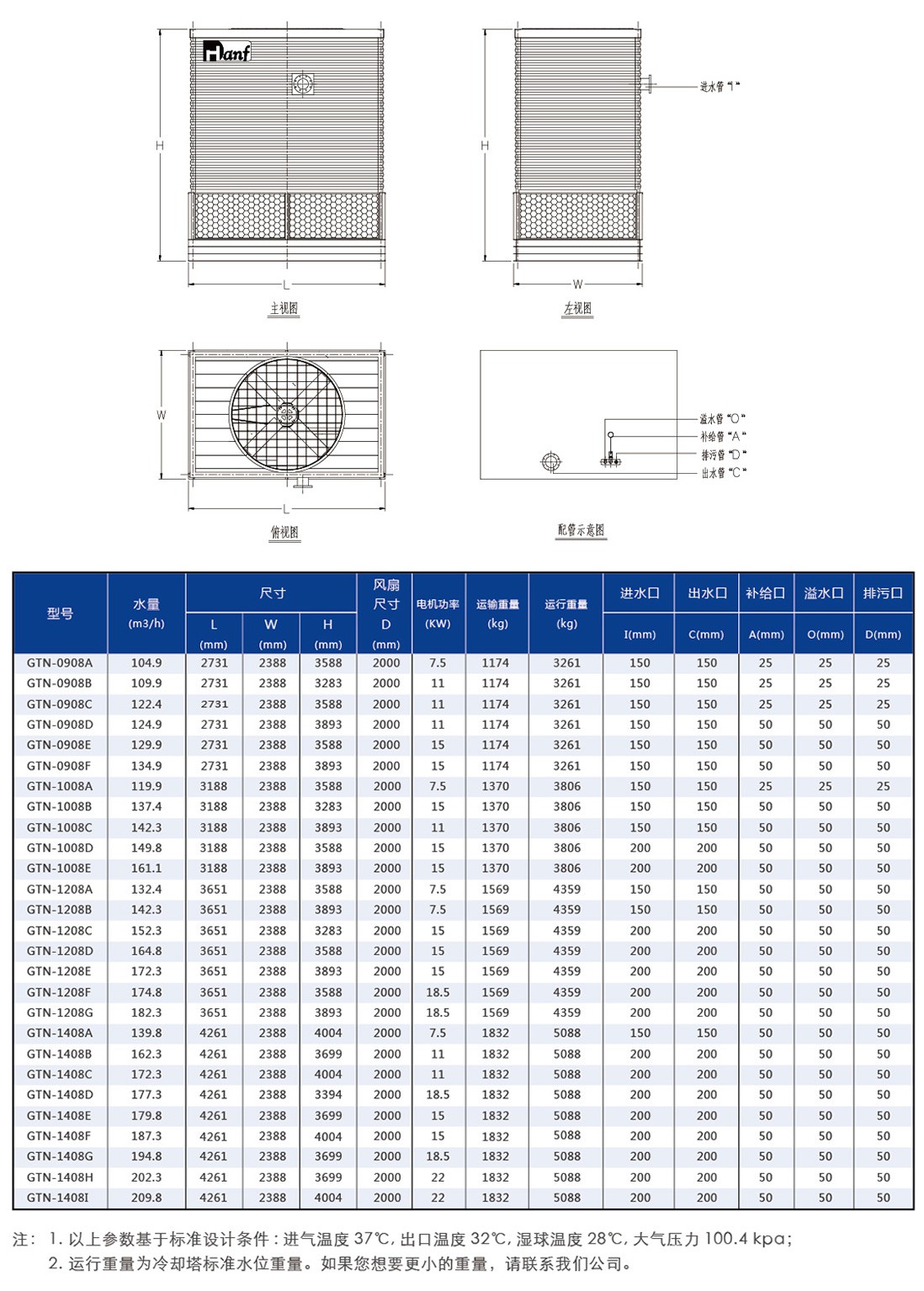

Compact structure, more flexible site layout, large selection range, single processing capacity of 60-666m3/h, high heat exchange efficiency, full series of CTI certification, anti icing design, suitable for winter operation, many materials, optional to meet various operation environmen.

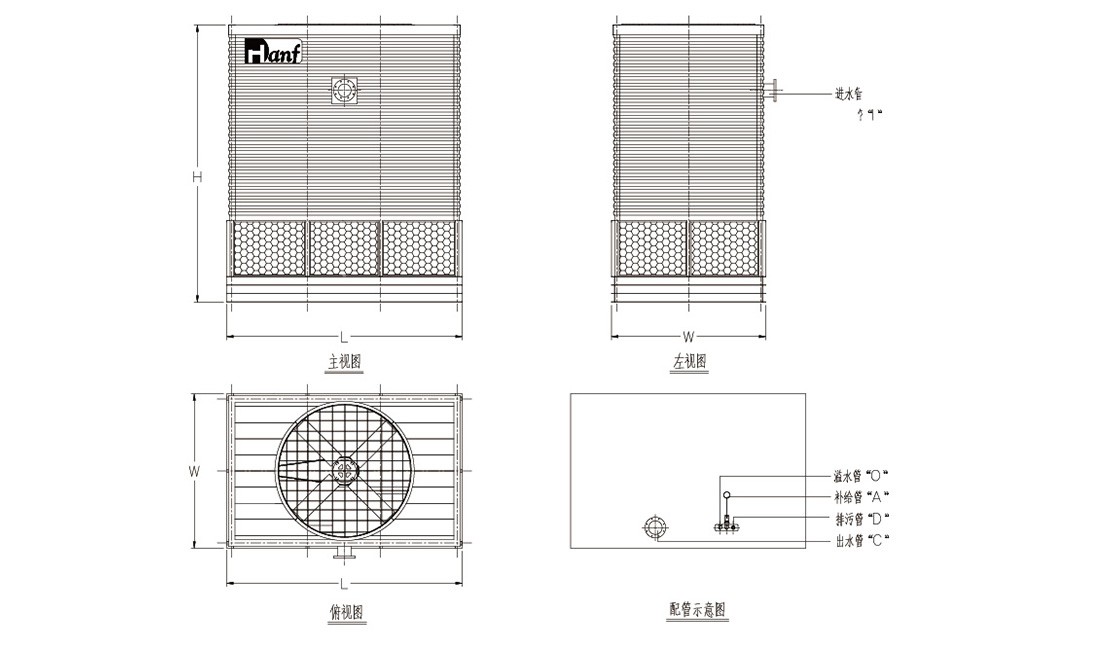

结构详述Detailed structure

桁架结构

主桁架结构基材使用新一代FRP拉挤型复合材料

抗震等级8度(地震加速度0.3G)

抗风等级高达12级(风压150kg/㎡)

可选配更高防风抗震等级配置

Truss Structure

new generation FRP pultrusion composite material is used as the main truss structure base material of truss structure,

with seismic grade of 8 degrees (seismic acceleration 0.3g),

wind resistance grade of 12 degrees (wind pressure 150kg / N),

and higher wind and seismic grade configuration is optional.

高效机翼式轴流风机
叶片可选FRP或铝合金材质
风量大、效率高
噪音低
防腐蚀

High efficiency wing axial flow fan

Leaf blade can be made of FRP or aluminum alloy

Large air volume and high efficiency

Low noise

Anticorrosion

风机驱动系统
标准配置多槽皮带和全封闭变频电机
重载式轴承设计,设计寿命L10为100,000小时
标配延伸润滑油管
电机位置易于维护保养
可拆卸风扇护网

draught fan drive system

Standard with multi groove belt and fully enclosed variable frequency motor

Heavy duty bearing design, design life L10 is 100000 hours

Standard extended lubricating oil pipe

Motor position is easy to maintain

Removable fan guard

高效收水器
多维立体式收水器,
精密水汽分离漂水率小于0.001%,即节水又可节省水处理费用
阻力小,收水效率高
耐腐蚀
易于拆卸

High efficiency water collector

Multi dimensional water collector,

The precision water vapor separation bleaching rate is less than 0.001%, which can save water and water treatment cost.

Low resistance and high water collection efficiency

Corrosion resistance

Easy to disassemble

布水器系统
主管标配FRP缠绕管,重量轻,负载小
支管采用加强型PVC耐压管,首创承插式密封安装,施工简便
ABS专利低压大口径喷头,布水均匀,不易堵塞
喷嘴方便装卸,免维护
可选配底进底出方式配管

Water distributor system

The main pipe is equipped with FRP winding pipe as standard, with light weight and small load.

The branch pipe adopts the reinforced PVC pressure pipe, which is the first socket type sealed installation, and the construction is simple.

ABS patent low pressure large diameter nozzle, evenly distributed water, not easy to block

Nozzle is convenient for loading and unloading, maintenance-free

Optional sole in and sole out piping

填料
多种薄膜式专利填料
PVC材质,耐腐蚀
换热面积大,通风阻力小
自熄型材料,火焰传播速度根据 ASTM E84测试为: Class A(火焰传播速率值(FSI值)不超过0-25,烟指数不超过450)

filler

A variety of film type patent fillers

PVC material, corrosion resistant

Large heat exchange area and small ventilation resistance

Self-extinguishing materials, flame propagation speed according to ASTM E84 test: Class A(flame propagation rate value (FSI value) no more than 0-25, smoke index no more than 450)

进风百叶
三防式进风百叶
防水滴飞溅防阳光直射、防止微生物滋生
防灰尘、异物进入塔内
易拆卸易维护

Air inlet louver

Three proof air inlet shutter

Water proof, splashing, direct sunlight proof and microbe proof

Prevent dust and foreign matters from entering the tower

Easy to disassemble and maintain

冷水盘
倾斜式冷水盘,易清洁
FRP材质、镀锌钢及不锈钢可选,耐腐蚀
标配不锈钢滤网
标配浮球补水组件

Cold water plate

Tilting cold water pan, easy to clean

FRP material, galvanized steel and stainless steel optional, corrosion resistant

Standard stainless steel filter screen

Standard floating ball water make-up assembly

产品特色
新型复合材料，结构牢固，性能卓越 布置灵活

product features

New composite material, firm structure, excellent performance and flexible layout

◆100%热力性能保证,GTN全系列产品都拥有CT认证◆FRP拉挤型材,物理性能稳定,力学性能良好,具有重量轻、强度高、耐腐蚀、免维护使用寿命长等特点,适用于各种复杂恶劣工况条件
桁架结构,坚固牢靠,抗风、抗震能力强
低能耗资源高效利用,拥有国家节能节水认证,耗电比小于0.035kwh/m3
漂水率低,得到国家官方认证,漂水率普遍低于0.001%无需防冻附件,冬季运行性能可靠保证
静音运行、环境舒适,拥有不同静音选项达到低噪音运行效果
可选配底进底出配管方式,有效节省现场配管空间
处理量选择范围大,结构紧凑,布置灵活

100% thermal performance guarantee, all GTN series products have CT certification. ◆ FRP pultrusion profile, with stable physical performance, good mechanical performance, light weight, high strength, corrosion resistance, long maintenance free service life and other characteristics, suitable for various complex and harsh working conditions

Truss structure, strong and reliable, strong wind resistance and earthquake resistance

Low energy consumption and efficient utilization of resources, with national energy saving and water saving certification, and power consumption ratio less than 0.035kwh/m3

The floating rate is low, and it has been officially certified by the state. The floating rate is generally lower than 0.001%, and there is no need for antifreeze accessories. The operation performance in winter is reliable.

Quiet operation, comfortable environment, with different mute options to achieve low noise operation effect

Optional bottom in and bottom out piping mode, effectively saving field piping space

Large capacity selection range, compact structure and flexible layout

维护安装成本低

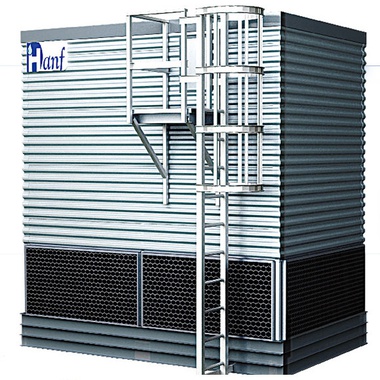

◆所有型号都可整装吊装,节省现场组装成本◆标配材质重量轻,所需现场费用也相应较低◆FRP拉挤型材对水质要求低,水处理维护成本低,持久耐用◆标配进风格栅,可减少维护时间、耗水量以及降低相应的水处理费用◆倾斜式水盘,方便清洗水盘,保持水盘良好的水质环境◆巧妙的驱动系统设计使维护保养简便◆多种维护配件选项,如外部吧梯、鼠笼和安全护栏等,配置齐全◆标配检修门,方便维护保养

Low maintenance and installation cost.

◆ all models can be assembled and hoisted, saving on-site assembly cost. ◆ standard material is light, and the field cost is correspondingly low. ◆ FRP pultrusion profile has low water quality requirement, low water treatment maintenance cost and durable. ◆ Standard with wind grille, it can reduce maintenance time and water consumption.And it can reduce the corresponding water treatment costs.◆ inclined water plate is convenient to clean and maintain water. Good water quality environment ◆ smart drive system design makes maintenance easy ◆ a variety of maintenance accessories options, such as external bar ladder, squirrel cage and safety guardrail, are fully equipped ◆ standard access door, convenient for maintenance.
