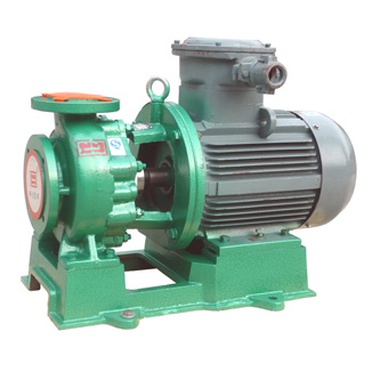

IHF (D) Fluoroplastic Alloy Centrifugal Pump
|
Product use This product is widely used in: automobile manufacturing pickling, painting process;Electrolyte transport in nonferrous metal smelting;Process flow of chlorine water, wastewater treatment and acid addition in ion membrane caustic soda project. Applicable temperature: -20℃~100℃. |
|||
|
Features IHF (D) centrifugal pump is a derivative of IHF centrifugal pump. It is a product developed in order to meet the performance requirements of IHF centrifugal pump while being restricted by the work site. All over-flow parts are made of fluoroplastic or fluoroplastic alloy, with a wide range of corrosion resistance; The base is made of metal, which has a strong pressure bearing capacity;The shaft seal adopts the advanced WB2 externally-installed bellows mechanical seal, which has reliable sealing performance. It adopts a short bracket direct connection structure, and the impeller shaft and the motor shaft adopt reliable Morse taper to transmit torque, and the pump covers a small area. |
|||
Speed: n = 2900r / min Design pressure: 1.6MPa "*" is the standard parameter
| Model | Flow m³/h | Head M | Efficiency % | NPSH m | Inlet×Outlet mm | Motor power Km | Weight Kg |
| IHF50-32-125(D) | 7 | 22 | 47 | 3.2 | 50×32 | 3 | 90 |
| 12.5 | 20 | 52 | |||||
| 15 | 16 | 50 | |||||
| IHF50-32-160(D) | 7 | 33 | 35 | 3.2 | 50×32 | 4 | 95 |
| 12.5 | 32 | 47 | |||||
| 15 | 30 | 47 | |||||
| IHF50-32-200(D) | 7 | 51 | 28 | 3.2 | 50×32 | 7.5 | 135 |
| 12.5 | 50 | 40 | |||||
| 15 | 49 | 48 | |||||
| IHF65-50-125(D) | 15 | 22 | 46 | 3.5 | 65×50 | 3 | 90 |
| 25 | 20 | 61 | |||||
| 35 | 16 | 67 | |||||
| IHF65-50-160(D) | 15 | 33 | 45 | 3.5 | 65×50 | 5.5 | 125 |
| 25 | 32 | 56 | |||||
| 35 | 30 | 65 | |||||
| IHF80-65-125(D) | 35 | 22 | 52 | 4 | 80×65 | 5.5 | 125 |
| 50 | 20 | 65 | |||||
| 60 | 18 | 70 |
