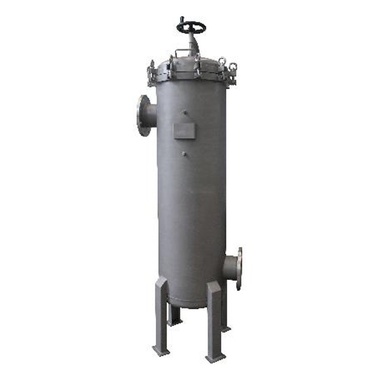

BRD large flow filter

■产品概述
大流量过滤器系列采用大流量折叠滤芯,适用于3M、PALLPARKER、合众斯等进口大流量滤芯,多用于水处理流量较大的保安过滤器,清洗过滤,反洗过滤、冷凝液过滤。

■ Product Overview
Large flow filter series adopts large flow folding filter element, which is suitable for 3M, pallparker, herzos and other imported large flow filter elements. It is mainly used for security filter with large water treatment flow, cleaning filter, backwashing filter and condensate filter.

■工作原理
大流量过滤器原液通过滤材,滤渣留在滤材壁上,滤液透过滤材流出,从而达到过滤的目的。

■ working principle
The raw liquid of the large flow filter passes through the filter material, the filter residue is left on the wall of the filter material, and the filtrate flows out through the filter material, so as to achieve the purpose of filtration.

■产品特点
1)使用更少数量的滤芯,降低劳动力和运行成本。
2)使用更小尺寸的过滤器壳体,降低成本,节省占地面积。
3)滤芯的更换更加快速,简便和安全。
4)热熔粘接的聚丙烯材质可防止颗粒释放和卸载,不同于普通的线绕滤芯。
5)折叠式表面设计使高流量滤芯的压力降比其他滤芯更低,使用寿命更长
6)内置O型密封圈,更好的密封

■ product features
1) Use fewer filter elements to reduce labor and operating costs.
2) Use smaller size filter shell, reduce cost and save floor space.
3) The replacement of filter element is faster, simpler and safer.
4) Hot melt bonded polypropylene material can prevent particles from releasing and unloading, which is different from ordinary wound filter element.
5) Folding surface design makes the pressure drop of high flow filter lower than other filter elements and longer service life
6) Built in O-ring for better sealing.
