Description
Performance parameter

Dry Type Transformer

Product overview

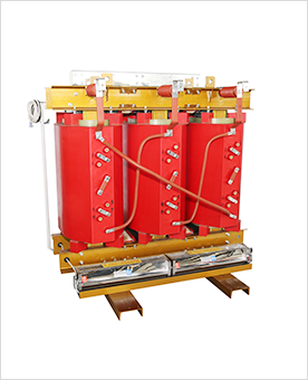

SC(B) type 10~ 13 voltage grade 10~35kV series epoxy resin cast dry transformers,The company adopts vacuum pouring equipment imported by HEDRICH company in Germany and software technology of ENCO company in Austria,Through digestion and absorption of foreign advanced technology, combined with the company's characteristic process and equipment, successfully developed a full series of new "four low and one strong" dry type transformer, namely with low loss, low temperature rise, low noise, low local discharge and strong resistance to sudden short circuit and other characteristics.

Product Series:

SC(B)10,SC(B)11,SC(B)12,SC(B)13

Product Features:

Energy saving and low loss

Flame retardant and good adaptability to environment

Compact design, small footprint, simple installation

Low noise, strong overload capacity and short circuit resistance

Strong insulation capability in case of overvoltage

Can be installed in poor environment

When forced air cooling, the rated capacity can be increased by 50%

SC(B)10型

额定容量	电压组合			联接组别	SC(B)10型10kV干变
	高压	分接范围%	低压		PO	PK	IO	UK
kVA					PO	PK	IO	UK
	kV		kV		kW	kW(120℃）	%	%
30	3	±2×2.5或±5.0	0.4	Dyn11	0.19	0.71	1.7	4
50					0.27	1	1.7
80	6			Yyno	0.37	1.38	1.6
100					0.4	1.57	1.6
125	10				0.47	1.85	1.4
160					0.54	2.13
200					0.62	2.53
250					0.72	2.76	1.2
315					0.88	3.47
400					0.98	3.99
500					1.16	4.88	1.1
630					1.34	5.88
630					1.3	5.96		6
800					1.52	6.96	1
1000					1.77	8.13
1250					2.09	9.69
1600					2.45	11.73	0.9
2000					3.05	14.45
2500					3.6	17.17
1600					2.45	12.96		8
2000					3.05	15.96
2500					3.6	18.89
3150					4.5	22
额定容量	电压组合			联结组别	SC(B)10型20kV干变
	电压组合				PO	PK	IO	UK
kVA	高压	分接范围%	低压		kW	kW(120℃)	%	%

	kV		kV
50	20	±2×2.5或±5.0	0.4	Dyn11	0.34	1.23	2	6
100					0.54	1.99	1.8
160	22			Yyno	0.67	2.47	1.5
200					0.73	2.94	1.5
250	24				0.84	3.42	1.3
315					0.97	4.08	1.3
400					1.15	4.84	1.1
500					1.35	5.79	1.1
630					1.53	6.84	1
800					1.75	8.26	1
1000					2.07	9.78	0.85
1250					2.38	11.5
1600					2.79	13.8
2000					3.24	16.3	0.7
2500					3.87	19.3
2000					3.24	17.8		8
2500					3.87	21.2
3150					4.35	23.61
额定容量	电压组合			联接组别	SC(B)10型35kV干变
	电压组合				PO	PK	IO	UK
kVA	高压	分接范围%	低压		kW	kW( 120℃)	%	%

	kV		kV
50	35	±2.5或±5.0	0.4	Dyn11	0.45	1.42	2.3	6
100					0.63	2.09	2
160	36			Yyno	0.79	2.81	1.5
200		±2×2.5或±5.0			0.88	3.32	1.5
250	37				0.99	3.8	1.3
315					1.17	4.51	1.3
400	38.5				1.37	5.41	1.1
500					1.62	6.65	1.1
630					1.86	7.69	1
800					2.16	9.12	1
1000					2.43	10.4	0.75
1250					2.83	12.7
1600					3.24	15.4
2000					3.82	18.2
2500					4.45	21.8

SC(B)11型

额定容量	电压组合			联接组别	SC(B)11型10kV干变
	高压	分接范围%	低压		PO	PK	IO	UK
kVA					PO	PK	IO	UK
	kV		kV		kW	kW(120℃）	%	%
30	3	±2×2.5或±5.0	0.4	Dyn11	0.17	0.71	1.7	4
50					0.24	1	1.7
80	6			Yyno	0.33	1.38	1.6
100					0.36	1.57	1.6
125	10				0.42	1.85	1.4
160					0.48	2.13
200					0.55	2.53
250					0.64	2.76	1.2
315					0.79	3.47
400					0.88	3.99
500					1.04	4.88	1.1
630					1.2	5.88
630					1.17	5.96		6
800					1.36	6.96	1
1000					1.59	8.13
1250					1.88	9.69
1600					2.2	11.73	0.9
2000					2.74	14.45
2500					3.24	17.17
1600					2.2	12.96		8
2000					2.74	15.96
2500					3.24	18.89
3150					4.2	22
额定容量	电压组合			联结组别	SC(B)11型20kV干变
	电压组合				PO	PK	IO	UK
kVA	高压	分接范围%	低压		kW	kW(120℃)	%	%

	kV		kV
50	20	±2×2.5或±5.0	0.4	Dyn11	0.3	1.23	2	6
100					0.48	1.99	1.8
160	22			Yyno	0.6	2.47	1.5
200					0.65	2.94	1.5
250	24				0.75	3.42	1.3
315					0.86	4.08	1.3
400					1.02	4.84	1.1
500					1.2	5.79	1.1
630					1.36	6.84	1
800					1.56	8.26	1
1000					1.84	9.78	0.85
1250					2.12	11.5
1600					2.48	13.8
2000					2.88	16.3	0.7
2500					3.44	19.3
2000					2.88	17.8		8
2500					3.44	21.2
3150					3.9	23.61
额定容量	电压组合			联接组别	SC(B)11型35kV干变
	电压组合				PO	PK	IO	UK
kVA	高压	分接范围%	低压		kW	kW( 120℃)	%	%

	kV		kV
50	35	±2.5或±5.0	0.4	Dyn11	0.4	1.42	2.3	6
100					0.56	2.09	2
160	36			Yyno	0.7	2.81	1.5
200		±2×2.5或±5.0			0.78	3.32	1.5
250	37				0.88	3.8	1.3
315					1.04	4.51	1.3
400	38.5				1.22	5.41	1.1
500					1.44	6.65	1.1
630					1.65	7.69	1
800					1.92	9.12	1
1000					2.16	10.4	0.75
1250					2.52	12.7
1600					2.88	15.4
2000					3.4	18.2
2500					3.96	21.8

SC(B)12型

额定容量	电压组合			联接组别	SC(B)12型10kV干变
	高压	分接范围%	低压		PO	PK	IO	UK
kVA					PO	PK	IO	UK
	kV		kV		kW	kW(120℃）	%	%
30	3	±2×2.5或±5.0	0.4	Dyn11	0.15	0.71	1.7	4
50					0.215	1	1.7
80	6			Yyno	0.295	1.38	1.6
100					0.32	1.57	1.6
125	10				0.375	1.85	1.4
160					0.43	2.13
200					0.495	2.53
250					0.575	2.76	1.2
315					0.705	3.47
400					0.785	3.99
500					0.93	4.88	1.1
630					1.07	5.88
630					1.04	5.96		6
800					1.215	6.96	1
1000					1.415	8.13
1250					1.67	9.69
1600					1.96	11.73	0.9
2000					2.44	14.45
2500					2.88	17.17
1600					1.96	12.96		8
2000					2.44	15.96
2500					2.88	18.89
3150					3.78	22

SC(B)13型

额定容量	电压组合			联接组别	SC(B)13型10kV干变
	高压	分接范围%	低压		PO	PK	IO	UK
kVA					PO	PK	IO	UK
	kV		kV		kW	kW(120℃）	%	%
30	3	±2×2.5或±5.0	0.4	Dyn11	0.135	0.64	1.7	4
50					0.195	0.9	1.7
80	6			Yyno	0.265	1.24	1.6
100					0.29	1.415	1.6
125	10				0.34	1.665	1.4
160					0.385	1.915
200					0.445	2.275
250					0.515	2.485	1.2
315					0.635	3.125
400					0.705	3.591
500					0.835	4.39	1.1
630					0.965	5.29
630					0.935	5.365		6
800					1.095	6.265	1
1000					1.275	7.315
1250					1.505	8.72
1600					1.765	10.555	0.9
2000					2.195	13.005
2500					2.59	15.455
1600					1.765	11.66		8
2000					2.195	14.36
2500					2.59	17
