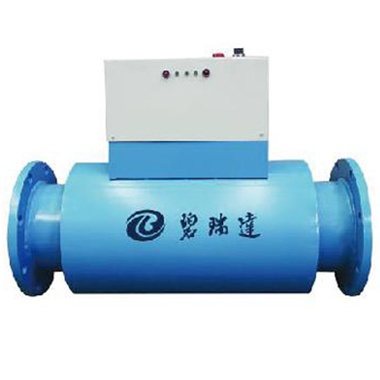

电子除垢仪  Electronic Water Descaler

产品概述
电子除垢仪又名电子水处理器是碧瑞达水处理技术中心在消化吸收国内外先进技术的同时与国内重点大学合作对该项技术进行了深入细致的研究,将除垢防垢、杀菌灭藻、防腐鬟蚀等功能相结合,开发研制的高效水处理产品据汎算:与使用化学方法相比,使用80%,提高效率189处理一吨水年而运转斐仅r当年就可以收回全部投置。更为优越的是无污染,使用寿产品可用于空自来水等用水系统。

Product overview
Electronic scale remover, also known as electronic water processor, is a high-efficiency water treatment product developed by Breda water treatment technology center in cooperation with key universities at home and abroad while digesting and absorbing advanced technologies at home and abroad. It combines the functions of scale removal and scale prevention, sterilization and algae killing, corrosion prevention and other functions. According to the extensive calculation, compared with the chemical methods, it can use 80% of the water treatment technology and improve the efficiency The rate of 189 is one ton of water year, while the operation of fey can be recovered in the same year. What's more, it's pollution-free and can be used in water systems such as air and tap water.

工作原理
该设备是根据不同的水质适应不同频率的电磁场来处理的机理设计。由主机产生电磁场对水质进行处理,起到阻止水垢形成的作用。另外,高频电磁场使细菌、藻类赖以生存的环境破坏,并且溶解氧在高电磁场的作用下形成一些如O3、H2O2等对绌菌、藻美极具杀伤力的物质,起到杀菌火的作用。

Working principle
The equipment is designed according to the mechanism that different water quality adapts to electromagnetic field of different frequency. The electromagnetic field produced by the main engine is used to treat the water quality and prevent the formation of scale. In addition, the high-frequency electromagnetic field destroys the environment on which bacteria and algae live, and the dissolved oxygen forms some substances such as O3 and H2O2 under the effect of high-frequency electromagnetic field, which are extremely destructive to the bacteria and algae, and play a role in killing fire.

产品特点
1)设备工作电压<36V,使用过程安全可靠。
2)电极材料采用特殊材料制作,具有损耗小、耐腐蚀、放电速度快等优点。
3)减少系统检修、清洗时间和费用。
4)一般系统中可以代替传统的化学清洗,具有节能环保等优点。

Product characteristics
1) The working voltage of the equipment is less than 36V, and the use process is safe and reliable.
2) The electrode material is made of special material, which has the advantages of small loss, corrosion resistance and fast discharge speed.
3） Reduce the time and cost of system maintenance and cleaning.
4) The general system can replace the traditional chemical cleaning and has the advantages of energy saving and environmental protection.

技术参数
输入电源:AC220V/50Hz
消耗功率:10W~500W
适应水质:总硬度≤700mg/L(以CaCO3计)、水温<90℃
工作压力范围：0.6MPa、1.0MPa、1.6MPa
防垢率：≥95%
杀菌灭藻率：≥99%
除垢率：≥95%
钢管腐蚀率：≤0.125mm/年
一次性处理有效距离：200m
循环水处理有效距离：200m
产品质量：符合国家行业标准GB/T26962-2011要求
连接方式：螺纹或法兰连接

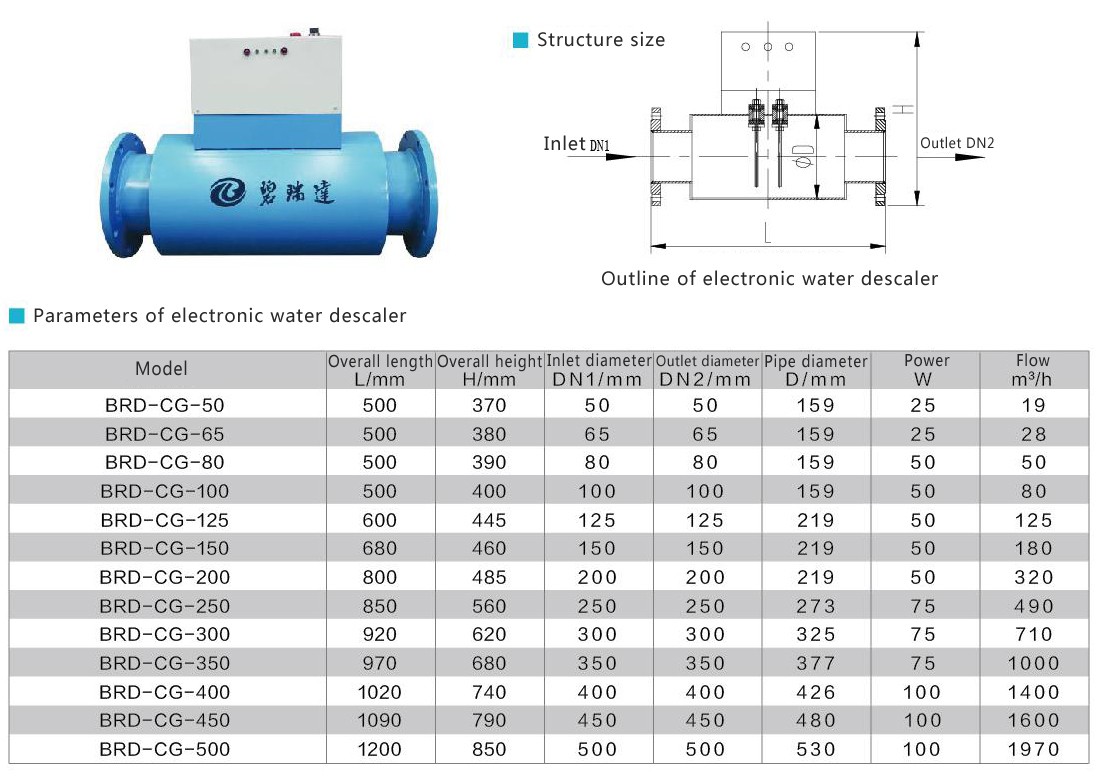

Technical parameter
Input power: AC220V / 50Hz
Power consumption: 10W ~ 500W
Applicable water quality: total hardness ≤ 700mg / L (calculated by CaCO3), water temperature < 90 ℃
Working pressure range: 0.6MPa, 1.0MPa, 1.6Mpa
Antiscaling rate: ≥ 95%
Sterilization and algaecification rate: ≥ 99%
Scale removal rate: ≥ 95%
Corrosion rate of steel pipe: ≤ 0.125mm/year
Effective distance of one-time treatment: 200m
Effective distance of circulating water treatment: 200m
Product quality: meet the requirements of national industry standard GB / t26962-2011
Connection mode: threaded or flanged
