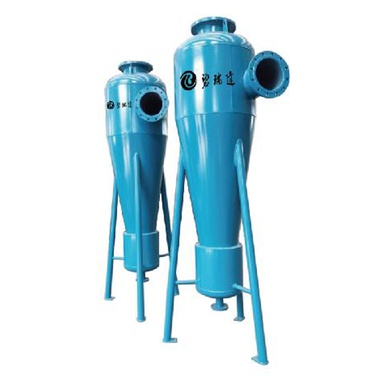

BRD Cyclone desander  旋流除砂器

产品概述
旋流除砂器主要用来清除地下水和地下热水以及其他水源中的固体颗粒,适用于水源热泵系统。中央空调冷却水、冷氏水系統、冬季冷暖循环水系統、业冷却水系統。广泛应用于化保、食品、医药等许多工业部门,在水处理领域实现除砂、降浊、固液分离等效果显著。

Product overview
The cyclone desander is mainly used to remove the solid particles in groundwater, geothermal water and other water sources, which is suitable for water source heat pump system. Central air conditioning cooling water, cooling water system, winter cooling and heating circulating water system, industrial cooling water system. It is widely used in many industrial sectors, such as chemical industry, food industry, medicine industry and so on. It has remarkable effects in the field of water treatment, such as sand removal, turbidity reduction, solid-liquid separation, etc.

工作原理
BRD-XL型旋流除砂器是根据流体中的固体颗粒在除砂器里旋转流动时的筛分原理研制的新型分离装置,当砂水混合的于砂水密度不同,在离心力、向心力共同作用下,使密度低的水上升,由出水口出,密度大的砂由设备底部而达到除砂的目的。

Working principle
BRD-XL hydrocyclone desander is a new separation device developed according to the screening principle of the solid particles in the fluid when they rotate and flow in the desander. When the density of the sand water is different when the sand water is mixed, the water with low density will rise under the combined action of centrifugal force and centripetal force, and the sand with high density will reach the purpose of desanding from the bottom of the device.

产品特点
1）通过设计计算及客户应用反馈不断改进,形成最优化的旋流结构；
2）解决了传统流除(砂亏)器对比重小的污物,如浮物、树叶、屑等处理困难的难题。
3）除污效率高,清污方便,取消以往除污器前后阀门及旁通管,阻力小，且恒定不变等优点；
4）简单,不耗能,成本低廉,易于安装和操作,几儿乎不需要维护。

Product characteristics
1) Through the continuous improvement of design calculation and customer application feedback, the optimized swirl structure is formed;
2) It solves the difficult problem of the traditional flow eliminator, such as floating objects, leaves, chips and so on.
3) The utility model has the advantages of high decontamination efficiency, convenient decontamination, small resistance and constant etc. by canceling the valves and bypass pipes before and after the previous decontamination device;
4) Simple, energy-saving, low cost, easy to install and operate, almost no maintenance.
