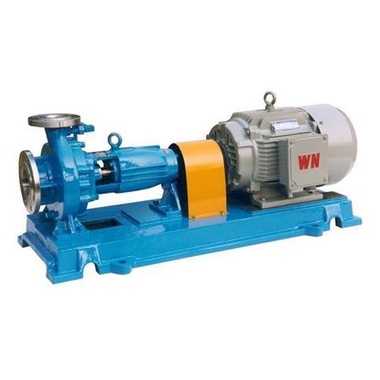

IH Stainless Steel Centrifugal Pump Series

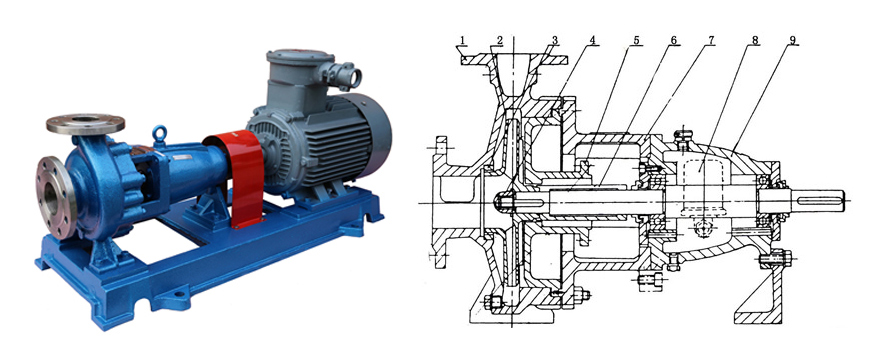

1 Pump body 2 Impeller 3 Seal ring 4 Impeller nut 5 Pump cover 6 Sealing part 7 Intermediate bracket 8 Shaft 9 Suspension part



Configuration and Installation Size



Usesage:
This product is widely used in petrochemical industry, acid and alkali production, non-ferrous metal smelting, automobile manufacturing pickling process, rare earth separation, pesticide, dye, medicine, paper making, electroplating, radio and other industries, it is suitable for conveying clean liquid or corrosive media containing a small number of particles (solid content ≤10%).

Scope of use:
(1) Pressure limit: Pressure limit is 1.6 MPa, it should be noted that the output pressure of the pump can not exceed the pressure limit.
(2)Range of Use Temperature: 0-100℃; Ambient temperature range: 0-40℃; Ambient humidity range: 35-85% RH.
(3) If the operating temperature is in the range of 100℃-150℃, its sealing form needs to be adjusted.
(4) It can convey medium with a small amount of particles and crystals (solid content < 10%) and prohibit conveying medium that will produce a large number of bubbles.
(5) The influence of liquid viscosity on pump performance: when the liquid viscosity changes, the pump performance also changes.

After opening the packing cases and bags, please check the following items:
(1) whether the products, accessories (including other information required by the user) are consistent with and complete the packing list;
(2) check all kinds of data on the nameplates of pumps and motors to confirm whether they meet the order requirements;
(3) whether the product is damaged during transportation and whether the connecting bolts are loose.

Model
Inlet Outlet Flow Head Matching motor Diameter of impeller
mm mm (m3/h) (m) speed r/min power(KW) mm
IH25-25-125 25 25 4 20 2900 1.1 125
IH25-25-160 25 25 4 32 2900 1.5 160
IH32-25-125 32 25 5 20 2900 1.5 125
IH32-25-160 32 25 5 32 2900 2.2 160
IH32-25-200 32 25 5 50 2900 3 200
IH40-32-125 40 32 7 20 2900 1.5 125
IH40-32-160 40 32 7 32 2900 2.2 160
IH40-32-200 40 32 7 50 2900 4 200
IH50-32-125 50 32 12.5 20 2900 2.2 125
IH50-32-125 50 32 6.3 5 1450 0.55 125
IH50-32-160 50 32 12.5 32 2900 3 160
IH50-32-160 50 32 6.3 8 1450 0.55 160
IH50-32-200 50 32 12.5 50 2900 5.5 200
IH50-32-200 50 32 6.3 12.5 1450 0.75 200
IH50-32-250 50 32 12.5 80 2900 11 250
IH50-32-250 50 32 6.3 20 1450 1.5 250
IH65-50-125 65 50 25 20 2900 3 125
IH65-50-125 65 50 12.5 5 1450 0.55 125
IH65-50-160 65 50 25 32 2900 5.5 160
IH65-50-160 65 50 12.5 8 1450 0.75 160
IH65-40-200 65 40 25 50 2900 11 200
IH65-40-200 65 40 12.5 12.5 1450 1.1 200
IH65-40-250 65 40 25 80 2900 15 250
IH65-40-250 65 40 12.5 20 1450 2.2 250
IH65-40-315 65 40 25 125 2900 30 315
IH65-40-315 65 40 12.5 32 1450 4 315
IH80-65-125 80 65 50 20 2900 5.5 125
IH80-65-125 80 65 25 5 1450 0.75 125
IH80-65-160 80 65 50 32 2900 7.5 160
IH80-65-160 80 65 25 8 1450 1.1 160
IH80-50-200 80 50 50 50 2900 15 200
IH80-50-200 80 50 25 12.5 1450 2.2 200
IH80-50-250 80 50 50 80 2900 30 250
IH80-50-250 80 50 25 20 1450 4 250
IH80-50-315 80 50 50 125 2900 45 315
IH80-50-315 80 50 25 32 1450 5.5 315
IH100-80-125 100 80 100 20 2900 11 125
IH100-80-125 100 80 50 5 1450 1.5 125
IH100-80-160 100 80 100 32 2900 15 160
IH100-80-160 100 80 50 8 1450 2.2 160
IH100-65-200 100 65 100 50 2900 30 200
IH100-65-200 100 65 50 12.5 1450 4 200
IH100-65-250 100 65 100 80 2900 45 250
IH100-65-250 100 65 50 20 1450 5.5 250
IH100-65-315 100 65 100 125 2900 75 315
IH100-65-315 100 65 50 32 1450 11 315
IH125-100-200 125 100 200 50 2900 45 200
IH125-100-200 125 100 100 12.5 1450 7.5 200
IH125-100-250 125 100 200 80 2900 75 250
IH125-100-250 125 100 100 20 1450 11 250
IH125-100-315 125 100 200 125 2900 110 315
IH125-100-315 125 100 100 32 1450 18.5 315
IH125-100-400 125 100 100 50 1450 30 400
IH150-125-250 150 125 200 20 1450 18.5 250
IH150-125-315 150 125 200 32 1450 30 315
IH150-125-400 150 125 200 50 1450 55 400
IH200-150-250 200 150 400 20 1450 37 250
IH200-150-315 200 150 400 32 1450 55 315
IH200-150-400 200 150 400 50 1450 90 400
IH250-200-315 250 200 550 32 1450 75 315
IH250-200-450 250 200 600 60 1450 160 450
