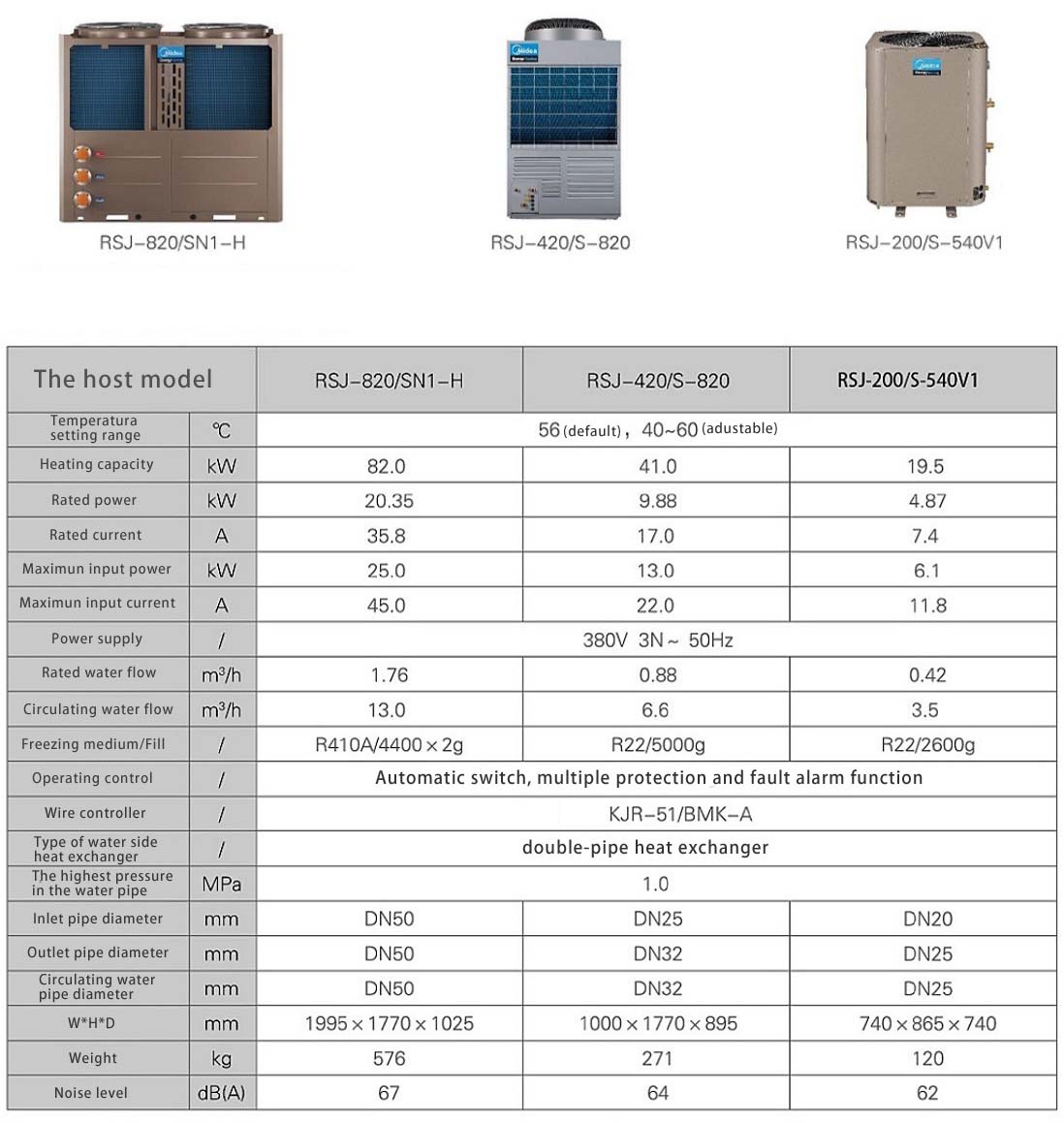

Note:

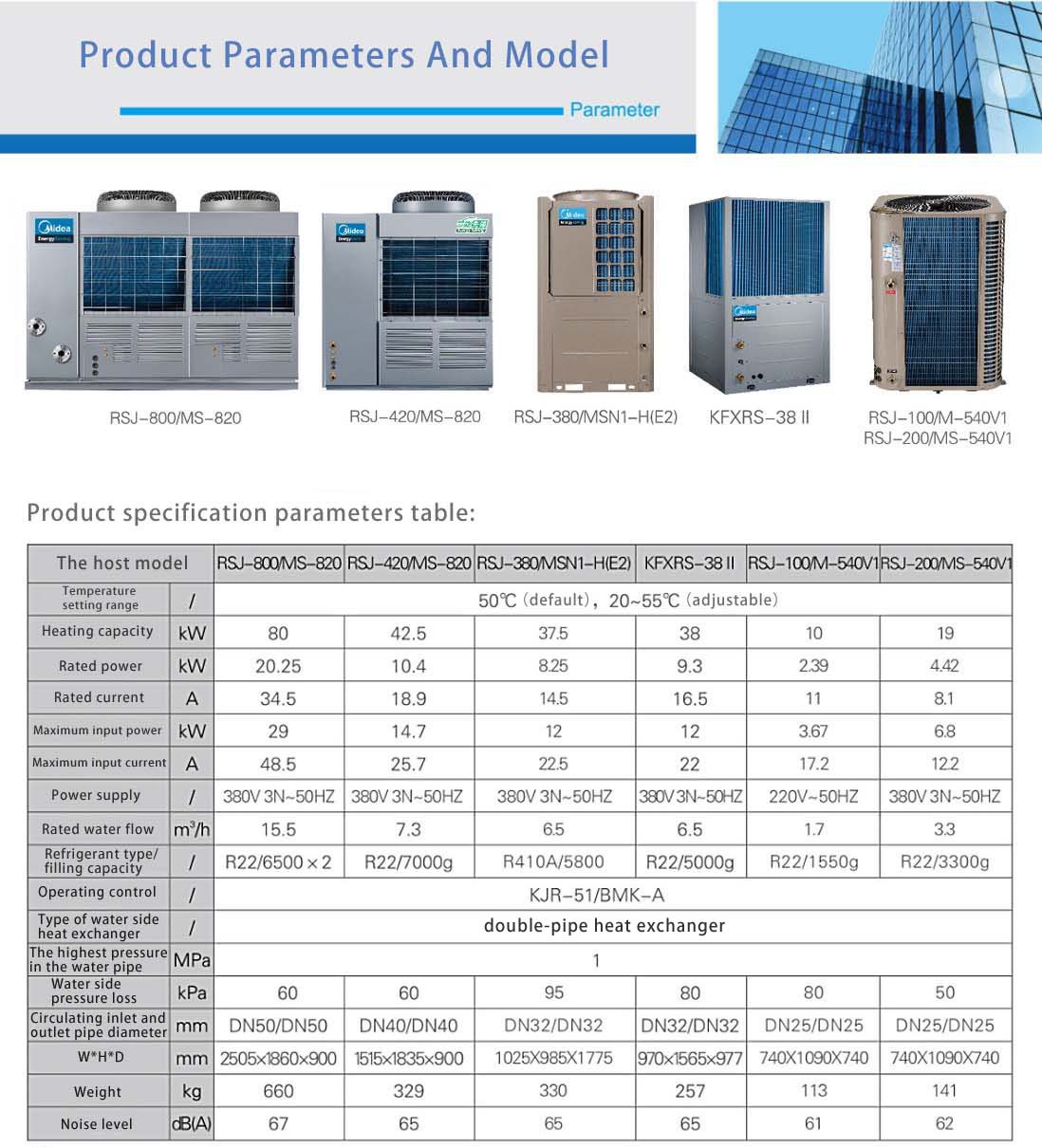

1. Test conditions: outdoor ambient temperature DB/WB: 20/15 ° c, unit inlet temperature 15 ° c, outlet temperature 55 ° c, actual heat production will change with the change of outdoor ambient temperature and relative humidity;

2. Applicable ambient temperature range of the product: -10-46 ° c;

3. If specifications change due to product improvement, the nameplate parameters shall prevail.
