Working conditions：

1. The maximum working pressure of the pump system is ≤ 16MPa, that is, the pump suction pressure + pump lift ≤ 16mA. Please indicate the working pressure of the system when ordering. When the working pressure of the pump system is greater than 16MPa, it shall be put forward separately when ordering, so that the overflow part and connection part of the pump shall be made of cast steel during manufacturing.

2. Applicable medium: the medium of clean water pump shall be free of corrosive liquid and solid insoluble substance. Its volume shall not exceed 001% of unit volume, and its particle size shall be less than 002mm. If the medium is with small particles, please explain when ordering

Useage:

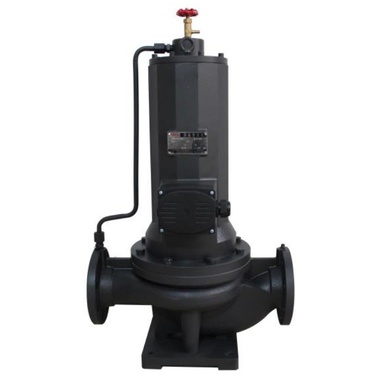

1. The KPG vertical centrifugal pump is a low-noise shielded pump designed by our company specifically for heating, ventilation and refrigeration. It is used to transport clean water, hot water and other liquids with similar physical properties to clean water. It is suitable for industrial and urban water supply and drainage, boiler, circulation, water supplement, air conditioning special, domestic water supply, fire fighting, and booster voltage stabilization equipment supporting medium temperature below 120 ℃.
2. KPG (B) anti-riot type shielding pump, conveying other liquids without solid particles, physical and chemical properties similar to water. Suitable for flammable and explosive environment, used in textile, petroleum, chemical, metallurgy, papermaking, food, pharmaceutical and synthetic fiber sectors, the use temperature is below 120 ℃.
