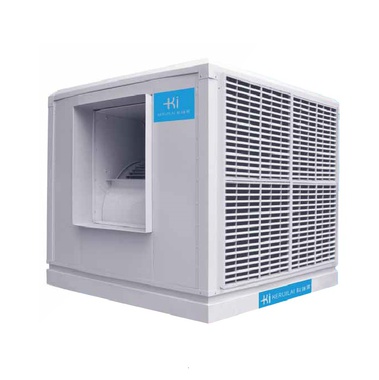

〖KERUILAI〗KT25/KT40/KT60 Industrial Air Coolers (high air pressure)

AA level - industry pioneerbrand story
  • Munters Keruilai Air Treatment Equipment(Guangdong)Co.,Ltd.

tp400-678-6995 / 021-59946780

Selection list
序号 采购操作
1
Related products
KT25/KT40/KT60 Evaporative air cooler Maximum air flow
25000/40000/60000m3/h
Noise
82.5/82.5/86dB(A)

Air Outlet
type A bottom/type B side/type C top



Characteristic
 High air pressure and long distance air delivery
 High performance cooling pads
 Stainless steel chassis to extend the service life
 Auto clean available in industrial cooler to keep tank and water clean all the time and thereby also prevent frequent clogging of pads
 High quality air pre-filter to protect the cooling pad
 Easy to operate and maintain



Target application
 Various factories
 Various industrial workshops
 Supermarket
 Entertainment Center
 Exhibition hall

Evaporative cooling is the most natural way to cool structures. It works by evaporating cool water to cool air around it. The water vapor is able to significantly reduce surrounding air temperature.A study conducted in Thailand concluded that office-goers and factory workers were able to adapt
to this natural, non-refrigerated cooling much better if their bodies were not already accustomed to artificial cooling from airconditioners. In other words, the body is more comfortable when the surroundings are cooled naturally.

Evaporative air coolers are more cost-effective since the process consumes 80% less energy. Air cooling devices are weather resistant and require less maintenance. Efficient air coolers can reduce dry air temperatures to nearly 95% of the wet-bulb temperature.



Model KT25B KT40B KT60B KT60C
Discharge Type Side Side Side Top
Cooling Capacity* KW 80 150 260 260
Nominal Max Airflow (m3/h) 25000 40000 60000 60000
Motor Power (KW) 5.5 7.5 15 15
Evaporative Efficiency* (%) 84 84 84 84
Evaporative Capacity* (L/h) 117 220 380 380
Sound Pressure Level @1m dB(A) 82.5 82.5 86 86
Water Tank Volume (L) 65 80 100 100
Air Outlet Dimensions (mm) 620 X 570 702 X 780 831 X 924 837 X931
Unit Size (mm) 1470 X 1490 X 1400 1770 X 1770 X 1380 2055 X 1970 X 1700 1970 X 1970 X 1754
Net Weight (Kg) 300 450 630 625
Running Weight (Kg) 375 555 755 760
Shipping Quantity (40HQ) 7 6 5 5
Voltage/Hertz/Phase (V/Hz/Ph) 380-415/50/3, 220/60/3 380-415/50/3, 220/60/3 380-415/50/3,460/60/3 380-415/50/3, 460/60/3



* Under ideal test conditions. Actual performance may vary depending on the ambient conditions and the heat load. All specifications are approximate and may vary within + 10% of the specified value. All products are subject to continuous improvement. The company reserves the right to change specifications without any prior notice. Images shown above are not as per scale.
