〖KERUILAI〗KS30/KS36 Evaporative Industrial Air Coolers

AA level - industry pioneerbrand story
  • Munters Keruilai Air Treatment Equipment(Guangdong)Co.,Ltd.

tp400-678-6995 / 021-59946780

Selection list
序号 采购操作
1
Related products

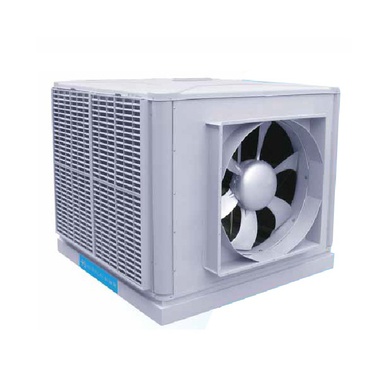

KS30/KS36 Evaporative Industrial Air Coolers



Characteristic
 High performance cooling pads
 Compact and light-weight design to facilitate the installation and transportation
 Stainless steel chassis to extend the service life
 Auto clean available to keep tank and water clean all the time and thereby also prevent frequent clogging of pads
 High quality air pre-filter to protect the cooling pad
 Easy to operate and maintain industrial evaporative air coolers
KS30A/B and KS36A/B with single speed
12 adjustable fan speeds for"-V"version

Target application
 Various factories
 Various industrial workshops
 Supermarket
 Entertainment Center
 Exhibition hall

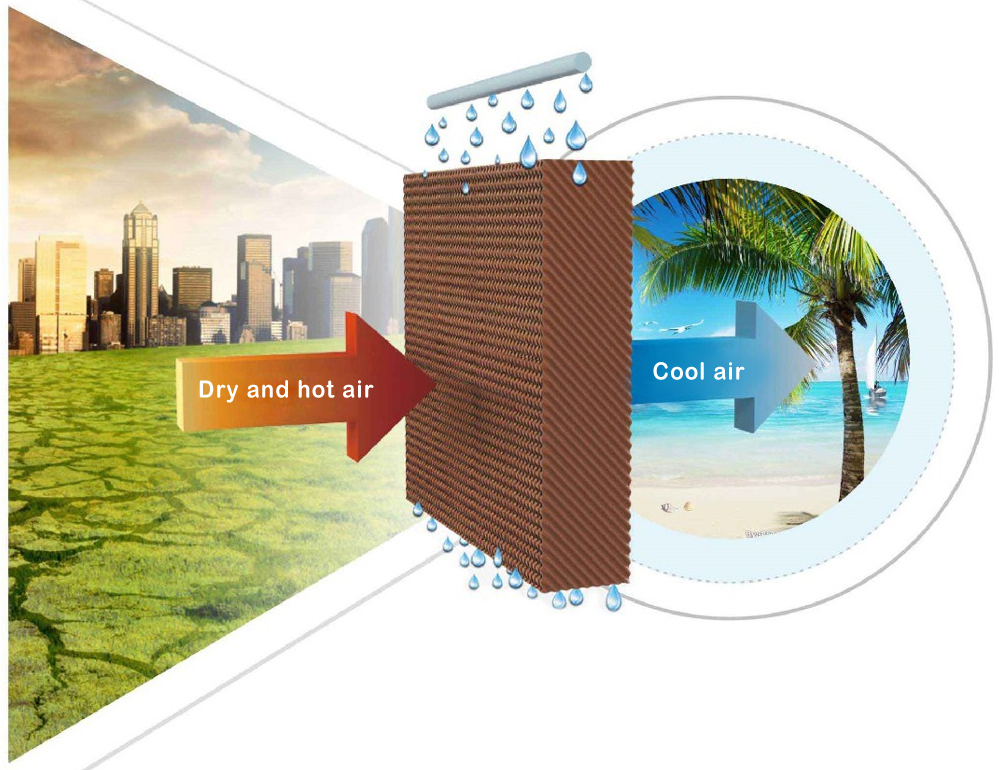

Evaporative cooling is the most natural way to cool structures. It works by evaporating cool water to cool air around it. The water vapor is able to significantly reduce surrounding air temperature.A study conducted in Thailand concluded that office-goers and factory workers were able to adapt
to this natural, non-refrigerated cooling much better if their bodies were not already accustomed to artificial cooling from airconditioners. In other words, the body is more comfortable when the surroundings are cooled naturally.

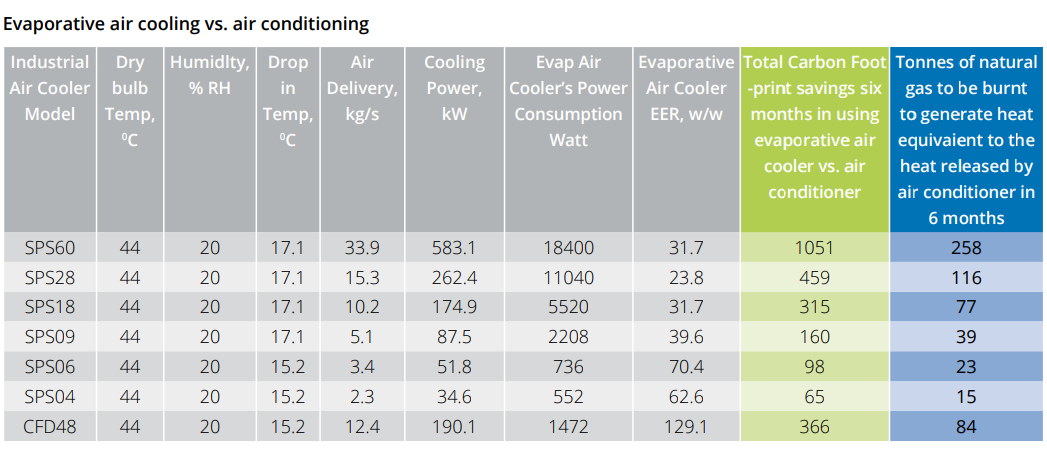

Evaporative air coolers are more cost-effective since the process consumes 80% less energy. Air cooling devices are weather resistant and require less maintenance. Efficient air coolers can reduce dry air temperatures to nearly 95% of the wet-bulb temperature.



Model KS30A KS30A-V KS30B KS30B-V
Discharge Type Bottom Bottom Side Side
Cooling Capacity* KW 80 80 80 80
Nominal Max Airflow (m3/h) 30000 30000 30000 30000
Motor Power (KW) 2.2 2.2 2.2 2.2
Evaporative Efficiency* (%) 86 86 86 86
Evaporative Capacity* (L/h) 117 117 117 117
Sound Pressure Level @1m dB(A) 78 78 78 78
Water Tank Volume (L) 65 65 65 65
Air Outlet Dimensions (mm) 800 X 800 800 X 800 800 X 800 800 X 800
Unit Size (mm) 1500 X 1500 X 1380 1500 X 1500 X 1380 1500 X 1580 X 1380 1500 X 1580 X 1380
Net Weight (Kg) 175 175 170 170
Running Weight (Kg) 270 270 255 255
Shipping Quantity (40HQ) 7 7 7 7
Voltage/Hertz/Phase (V/Hz/Ph) 220/60/3,380-415/50/3,380-415/60/3,460/60/3 380-415/50/3,380-415/60/3,460/60/3 220/60/3,380-415/50/3,380-415/60/3,460/60/3 380-415/50/3,380-415/60/3,460/60/3

Model KS36A KS36A-V KS36B KS36B-V
Discharge Type Bottom Bottom Side Side
Cooling Capacity* KW 100 100 100 100
Nominal Max Airflow (m3/h) 36000 36000 36000 36000
Motor Power (KW) 3 3 3 3
Evaporative Efficiency* (%) 86 86 86 86
Evaporative Capacity* (L/h) 150 150 150 150
Sound Pressure Level @1m dB(A) 80 80 80 80
Water Tank Volume (L) 65 65 65 65
Air Outlet Dimensions (mm) 800 X 800 800 X 800 800 X 800 800 X 800
Unit Size (mm) 1500 X 1500 X 1380 1500 X 1500 X 1380 1500 X 1570 X 1380 1500 X 1570 X 1380
Net Weight (Kg) 160 160 155 155
Running Weight (Kg) 255 255 240 240
Shipping Quantity (40HQ) 7 7 7 7
Voltage/Hertz/Phase (V/Hz/Ph) 220/60/3,380-415/50/3,380-415/60/3,460/60/3 380-415/50/3,380-415/60/3,460/60/3 220/60/3,380-415/50/3,380-415/60/3,460/60/3 380-415/50/3,380-415/60/3,460/60/3

* Under ideal test conditions. Actual performance may vary depending on the ambient conditions and the heat load. All specifications are approximate and may vary within + 10% of the specified value. All products are subject to continuous improvement. The company reserves the right to change specifications without any prior notice.
