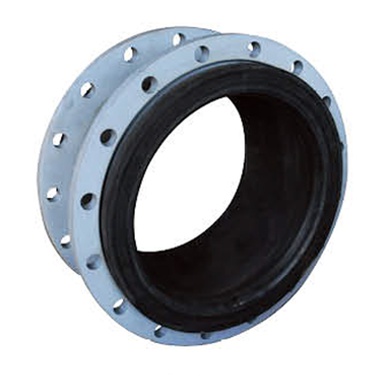

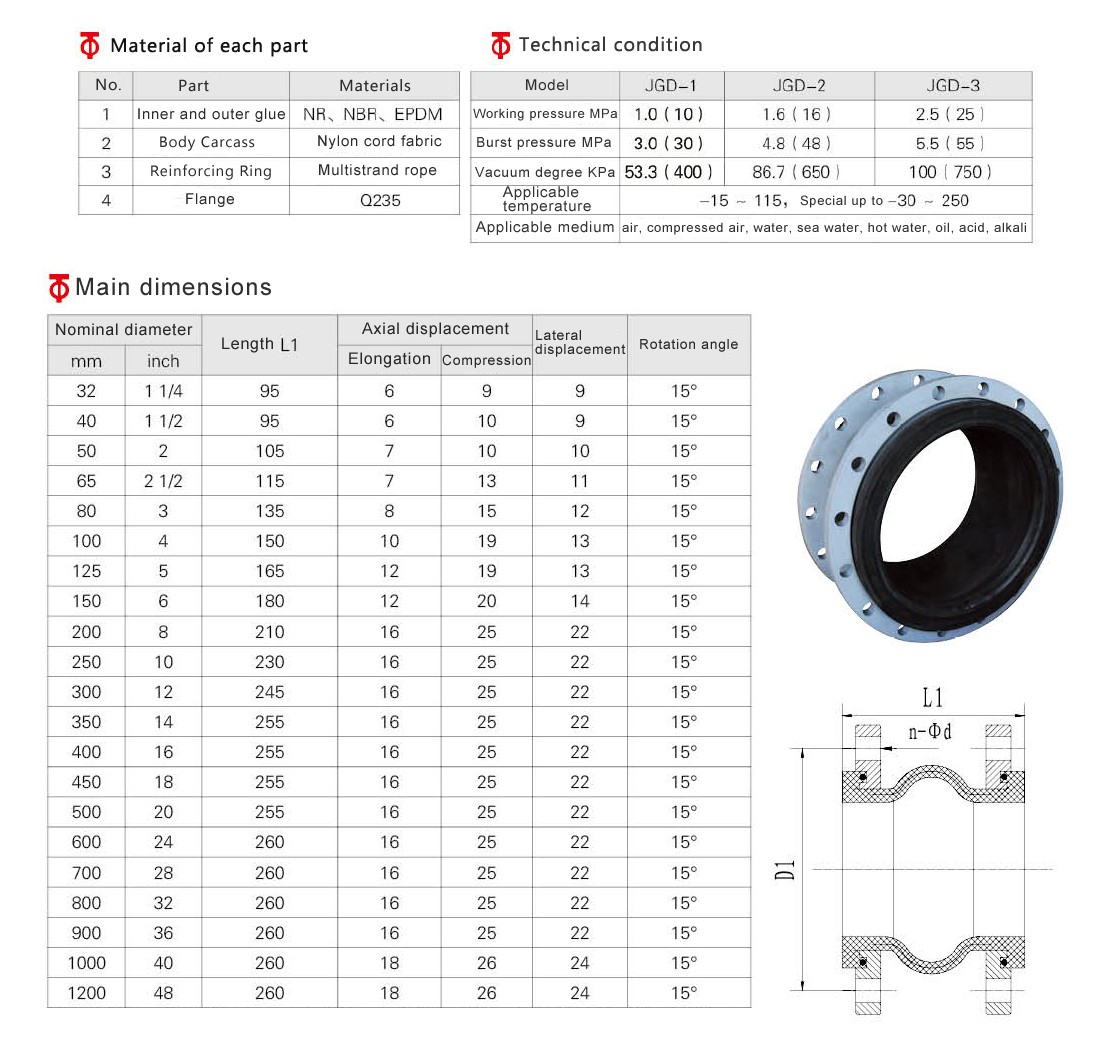

JGD rubber flexible joint

Rubber flexible joint are also called shock absorber, pipe shock absorber, shock throat, soft joint, etc.It is a kind of high elasticity, high air tightness, medium resistance and weather resistance pipe joint.

Performance :

1. Small size, light weight, good elasticity, easy installation and maintenance.

2. It can produce lateral, axial and angular displacement during installation, and it is not restricted by the user's pipeline is not thorough, the flange is not parallel.

3. It can reduce the structure transmission noise while working, and has strong vibration absorption ability.

4. The self-developed internal seamless high-pressure rubber joint effectively prevents the corrosive medium from corroding the inner wall of the rubber joint in pipelines resistant to high temperature, acid, alkali and oil, and improves the service life.

Scope of use :

Due to the good comprehensive performance of flexible rubber joints, it is widely used in basic projects such as chemical industry, construction, water supply, drainage, petroleum, light, heavy industry, freezing, sanitary and plumbing, fire protection, electricity, etc.

Note:

1、DN32-1200  PN=1MPa
2、DN32-300    PN=1.6MPa
3、DN32-300    PN=2.5MPa
4、Special requirements can be customized.
5、To use this product in high-rise water supply, the pipeline must have a fixed support or fixed bracket, otherwise the product should be installed with anti-pull-off device, the force of the fixed support or bracket must be greater than the axial force, otherwise the anti-pull-off device should also be installed.

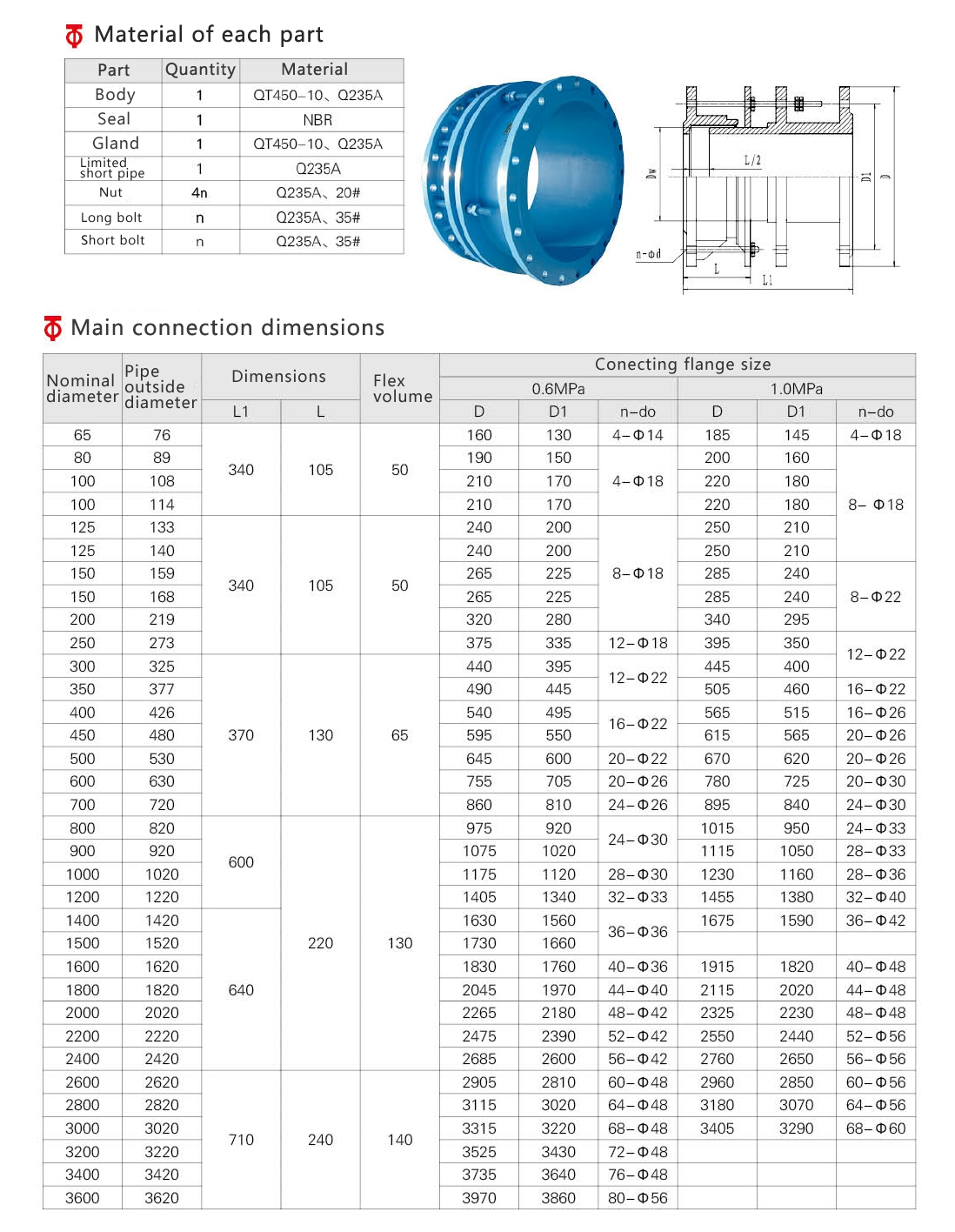

VSSJA-2（B2F）double flange limit expansion joint
