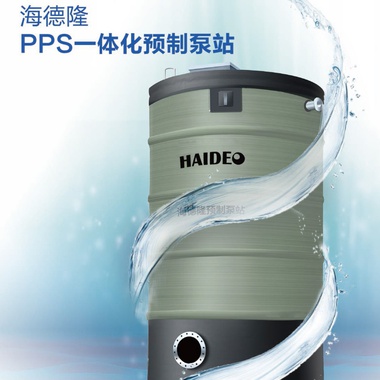

HDL-PPS series integrated prefabricated pump station

Application scope: Municipal industry, basement drainage, subway drainage, living areas, factories.

Advantage
Small occupied area
Concealed installation
Does not affect the beauty of the surrounding environment
Low installation cost, strong corrosion resistance
Long service life, safe and stable, low failure rate

Quick installation

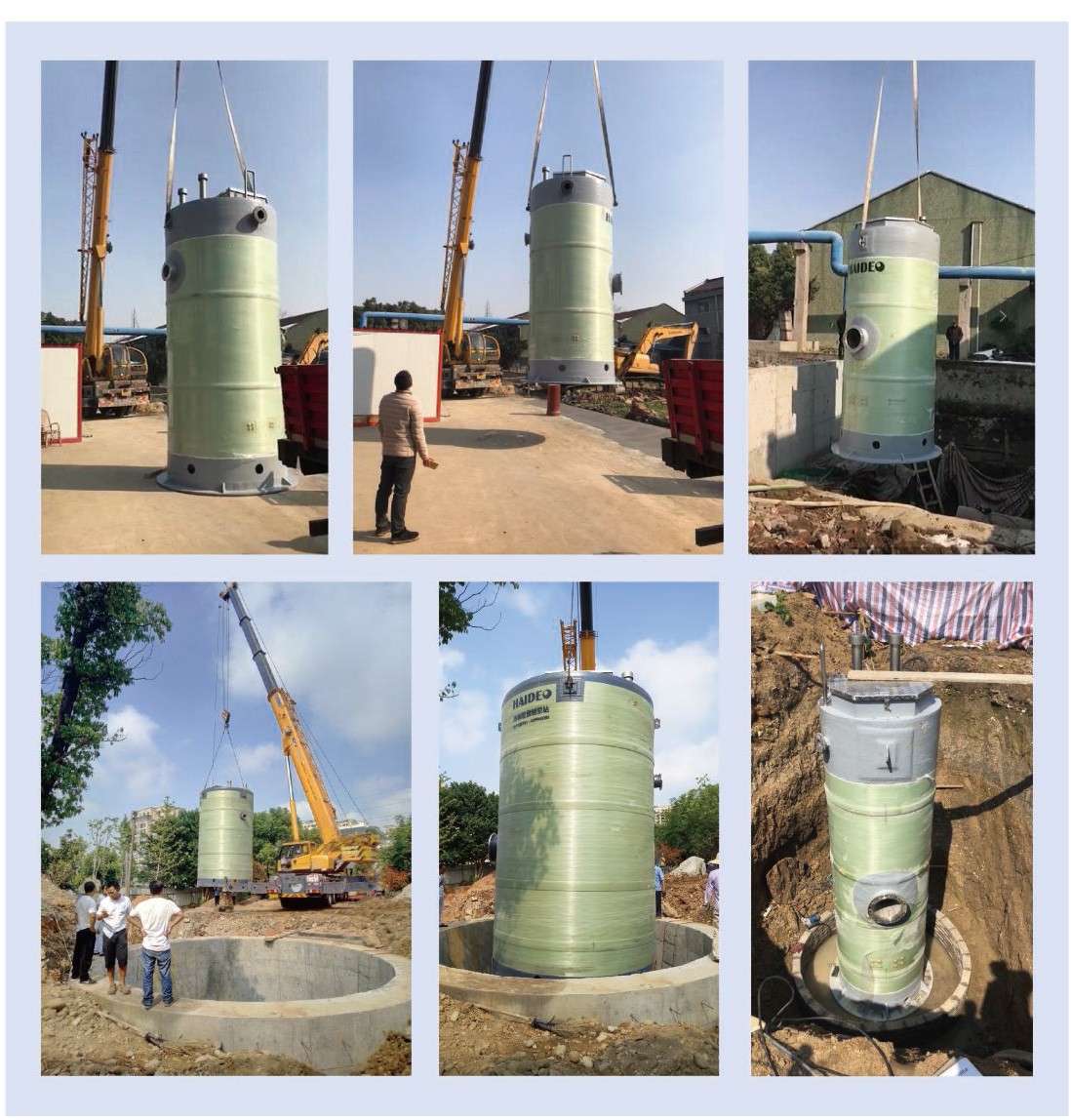

HDL-HPE Zhijie prefabricated pumping stations are delivered to customers in complete sets. They only need to be installed and taken over for operation on site. Whether it is outdoor or indoor, surface or buried, only a small amount of construction can be put into operation.
Light and strong
High-density polyethylene is used as the cylinder. Compared with the FRP cylinder, the material is light and strong, the transportation cost is low, the installation is convenient.
Safety
The extracted medium is mostly sewage,after long-term accumulation, it is easy to ferment and produce toxic and harmful gases such as carbon monoxide, methane, hydrogen sulfide, etc. Zhijie series pumping stations adopt a downhole-free design, all operations and management processes can be completed on the ground, effectively ensuring the safety of operators.
Energy saving
According to the user's site conditions, through the cooperation of different specifications and functions of the cabinet and the pump, it is more suitable for the site conditions, and the pumps are controlled by multiple sets of liquid level switches to realize the high-efficiency and energy-saving.
Wisdom
PLC is used to collect pump station operation information and upload it to mobile phone or computer client. Users can remotely view and control the operation of pump station. The system automatically generates running logs, reports, and fault records. Unattended, intelligent management.

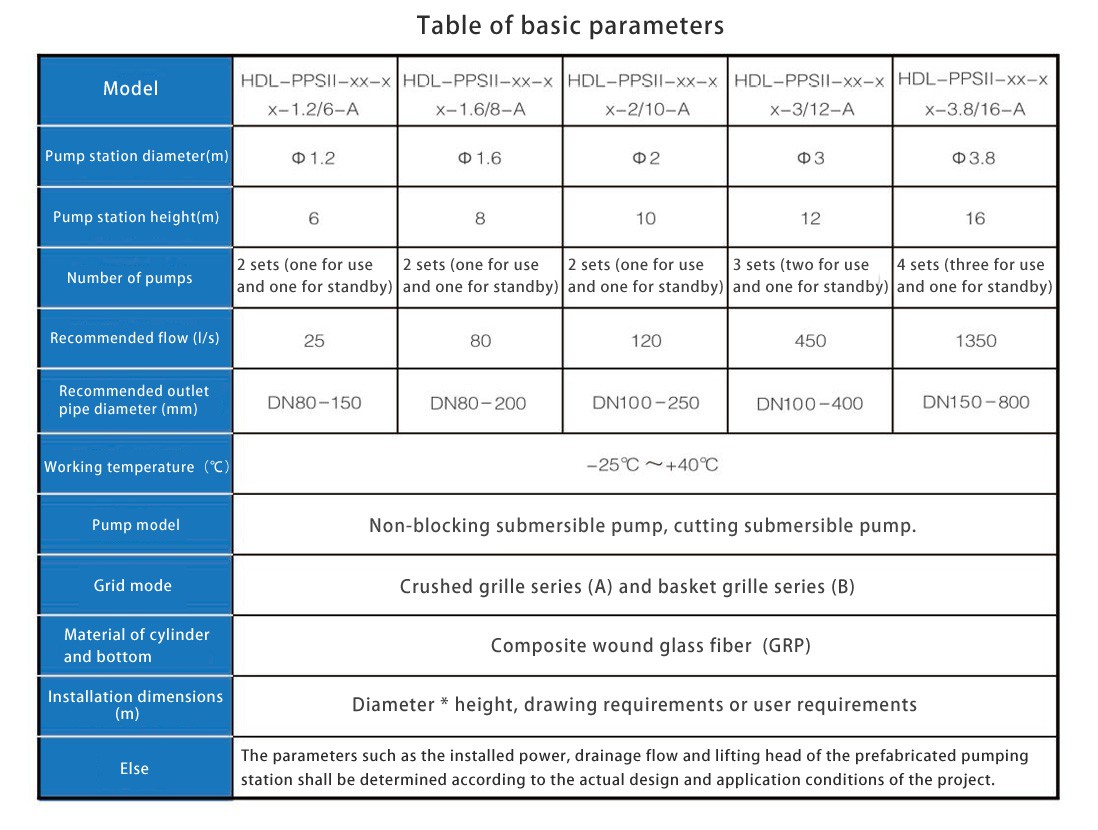

Technical characteristics
Intelligent design, unattended, remote monitoring of pump station operation
Adopts high density thickening polyethylene material, corrosion resistance, low temperature resistance, anti-aging and long service life
Coupling installation of water pump
Two sets of liquid level control devices are used to control start stop and high liquid level alarm
CFD anti silt base to reduce the deposition of sewage in the pump station
Matching with high-efficiency anti-clogging sewage pump / cutting pump to ensure stable operation of the equipment
According to the needs of users, the size and buried depth of water inlet and outlet can be flexibly configured
The internal pipe valves are optimized and the layout is reasonable. Convenient for transportation, hoisting and maintenance
Safe and reliable, equipped with vent pipe and grounding
Intelligent design, unattended, remote monitoring of pump station operation
