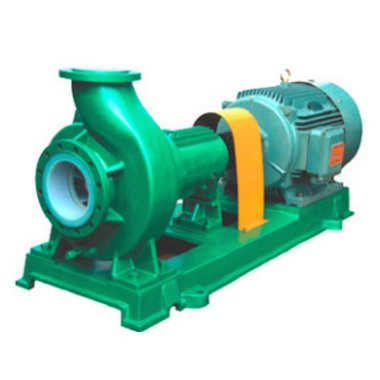

Design features: Standardized design IHF centrifugal pump is designed and manufactured according to international standards and relevant national standards.Its performance, rated performance point and size are equivalent to the international standard ISO2858.   National standard no.: GB5662 axial suction magnetic pump (16bar) designation, performance and dimensions GB5656 centrifugal pump technology requirements (Ⅱ)

Patented lining process:

The body and pump cover are lined with fluoroplastics by metal (HT200) matrix, and the impeller is pressed into shape by metal insert (WCB) outsourcing fluoroplastics alloy.

Advantages: wide range of corrosion resistance, high strength and durability.

Reliable mechanical seal:

The shaft seal adopts advanced outer bellows mechanical seal, the static ring adopts alumina (99.99%) ceramics, and the moving ring adopts tetrafluorin filling material (or other materials according to the user's special conditions).

Advantages: corrosion resistance, abrasion resistance, good sealing, easy installation, easy maintenance.

Product use:

This product is widely used in: automobile manufacturing pickling, painting process;Conveying of electrolyte in non-ferrous metal smelting;Ion membrane caustic soda project in chlorine water, wastewater treatment and adding acid and other processes.

Applicable temperature: -20℃~150℃.

The core technology:

Patent name: anticorrosive lined impeller

Patent no. : ZL200820038733.4
