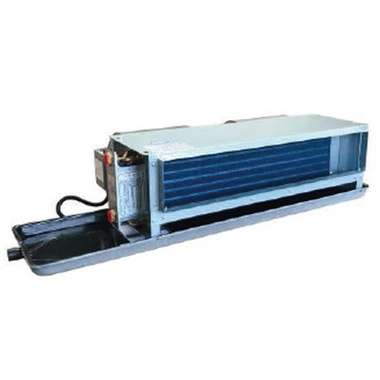

FPWA/FPWB/FPWM Horizontal Water Cooling Fan Coil Unit

High performance and environmental protection
The heat exchange fins are made of high-quality ordinary aluminum foil or hydrophilic aluminum foil by automatic high-speed punching machine.The copper tube is formed of high-quality red copper tube and fin through the sleeve, and adopts advanced welding technology. The 16MPa water pressure expansion tube fully guarantees the performance and quality of the coil.

Processing technology
After being formed by the combination of automatic straightening machine, tube changing machine, tube shrinking machine and fin bushing, after welding with advanced technology, the use of advanced non-shrinking mechanical expansion tube or 16Mpa hydraulic expansion tube; all zeros of the unit The components are made of high-quality and environmentally friendly galvanized steel plate produced by Baosteel. The film is protected during the process. The plate is not scratched. To facilitate the use and installation of the customer, the heat exchanger is detachable. The air outlet is equipped with a connecting bead and a mounting hole.

Safe and durable three-speed motor
The motor is a capacitor-operated high-efficiency energy-saving special motor, high-precision bearings, long-lasting durability, low current, low noise, low temperature rise, high efficiency and other characteristics. The fan fixing plate connected to the motor base is reinforced with punching ribs, which is stable in operation and low in vibration, which reduces the noise of the unit.The junction box and terminal are made of insulating material, the terminal is protected by a wire buckle heat shrink tube, and the ground wire is introduced into the wiring Terminals are safer and more convenient. To ensure customer safety, the unit has passed the CE safety certification.

Low noise centrifugal fan
The fan adopts double inlet centrifugal galvanized wind wheel, there is no gap between the wind wheel and the corner of the body, the suction is balanced, and the noise is reduced. After two dynamic balance tests, the vibration is small, the noise is low, and the air volume is large. The fan body is made of high-quality and environmentally friendly galvanized steel plate produced by Baosteel. The side plate and the shell panel are stamped and formed using advanced deep positioning technology. The panel is reinforced with stamping ribs, which is more stable and reliable without vibration.

Water tray structure
The structure of the water collecting tray is novel and unique. It is formed by using a high-quality galvanized steel sheet to stretch the mold and form a certain slope to ensure that the condensed water flows out in time and the water tray is always dry. After the second spraying treatment, the service life of the water tray is extended, and the insulation material is attached, and the cold bridge phenomenon will never occur. The drip tray is more resistant to corrosion, without stagnant water, insects, and bacteria. The length of the drip tray can be increased according to customer requirements.

Rigorous testing
Fully implement assembly line testing to ensure that 100% of all products have passed all tests. Each batch of products is tested for performance sampling according to national standards to ensure the stability and reliability of product performance.

Control, flexible, convenient, energy saving
Automatic control and remote control can be installed according to customer requirements, and can be controlled with the host and computer and other equipment. Optional intelligent stepless speed control switch developed by our company can realize energy-saving, quiet and comfortable operation.
