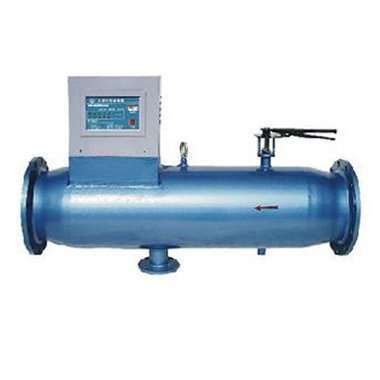

BRD射频式水处理器  Radio frequency (rf) type water processor

■产品概述
射频式水处理器是集防垢、除垢、杀菌、灭藻、过滤等功能于ー身;是高频电子水处理器、快速反冲洗过滤器、除污器于一体的多功集能水处理器。实现系统运行状态下的过滤、收集、浓缩排污,达到控制水质的目的。可应用于冷冻、冷却、给水、地下水等众多循环水系统。

■工作原理
射频式水处理器是通过滤体与射频发射极的组合,来完成对系统存在的结垢、腐蚀、污物、菌藻的综合处理。过滤体由不锈钢网、导向阀、排污口组成。通过导向阀的启闭来实现对污物的載留、反冲排污的全过程。它具有机电一体化的设计,体积小、阻力低、流量大、运行管理费低、操作简单、维护方便,是各水系统的最佳选择。

■产品特点
1)电极工作电压<36V,使用安全可靠。
2)过滤元件采用不锈钢滤网,过滤精度高,流通量大。
3)电极材料采用特殊材料制作,具有损耗小、耐腐蚀、放电速度快等优点。
4)减少系统检修、清洗时间和费用。
5)采用物理手段过滤、杀菌灭藻、除垢阻垢,具有节能环保等优点。

■技术参数
工作电压：AC220V/50HZ
缓蚀率：≤0.092mm/年
阻垢、除垢率：≥95%
杀菌率：≥95%
灭藻率：≥95%
进水水质：总硬度(以CaCO3计)≤800mg;适用水温0℃~+70℃
工作压力：0.6、1.0、1.6MPa;相对湿度<95%。环境温度-5℃-+40℃
过滤精度：1000-3500μm
连接方式：法兰连接

■ Product Overview
RF water treatment unit is a multi-function water treatment unit with functions of scale prevention, descaling, sterilization, algaecification, filtration, etc. it is also a high-frequency electronic water treatment unit, fast backwash filter and decontamination unit. In order to control the water quality, the filtration, collection, concentration and blowdown of the system are realized. It can be used in refrigeration, cooling, water supply, groundwater and many other circulating water systems.

■ Working principle
RF water processor is a combination of filter body and RF emitter to complete the comprehensive treatment of scale, corrosion, dirt, bacteria and algae existing in the system. The filter body is composed of stainless steel mesh, guide valve and drain outlet. Through the opening and closing of the guide valve to achieve the whole process of waste retention, backwash and sewage discharge. It has the design of mechatronics, small volume, low resistance, large flow, low operation and management cost, simple operation and convenient maintenance. It is the best choice for each water system.

■ Product features
1) The working voltage of electrode is less than 36V, which is safe and reliable.
2) The filter element adopts stainless steel filter screen, which has high filtering precision and large flow capacity.
3) The electrode material is made of special material, which has the advantages of small loss, corrosion resistance and fast discharge speed.
4) Reduce the time and cost of system maintenance and cleaning.
5) It has the advantages of energy saving and environmental protection by using physical means to filter, sterilize and kill algae, scale and scale.

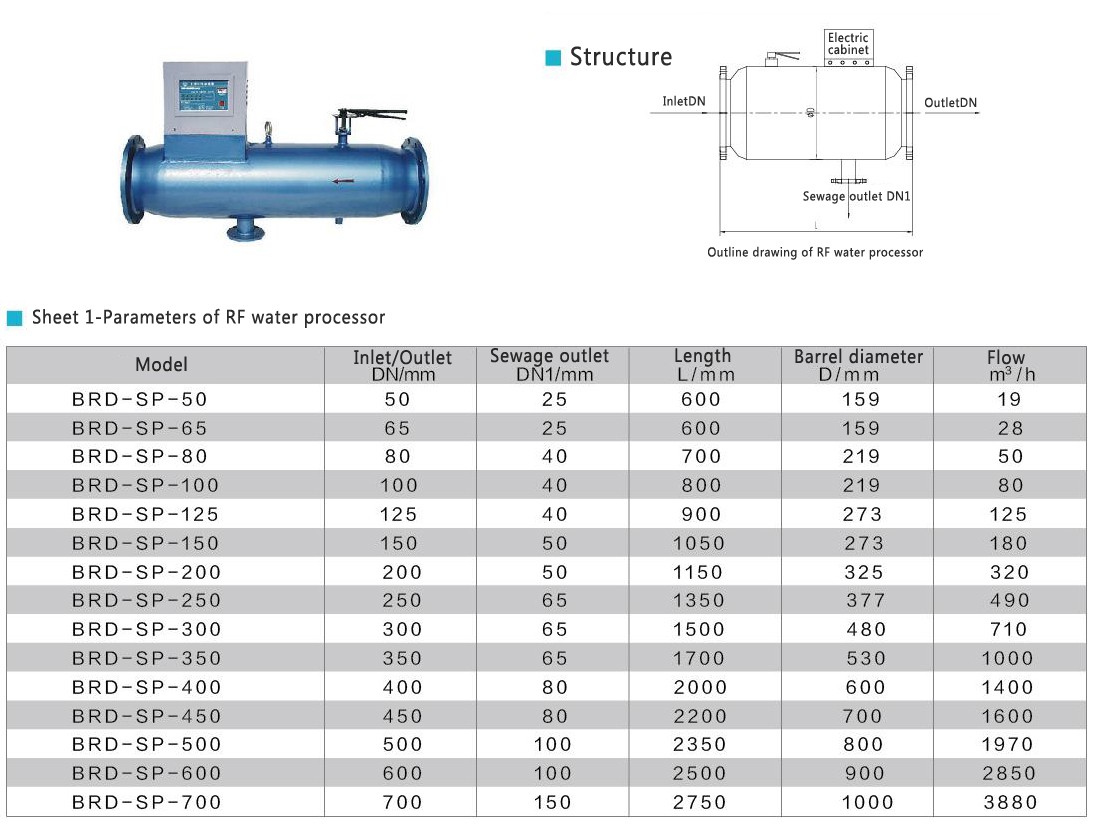

■ Technical parameters
Working voltage: AC220V / 50Hz
Corrosion inhibition rate: ≤ 0.092mm/year
Scale inhibition and descaling rate: ≥ 95%
Sterilization rate: ≥ 95%
Algaecide rate: ≥ 95%
Inlet water quality: total hardness (calculated by CaCO3) ≤ 800mg; applicable water temperature: 0 ℃ ~ + 70 ℃
Working pressure: 0.6, 1.0, 1.6Mpa; relative humidity < 95%. Ambient temperature - 5 ℃ - + 40 ℃
Filtering accuracy: 1000-3500 μ M
Connection mode: flange connection
