Features

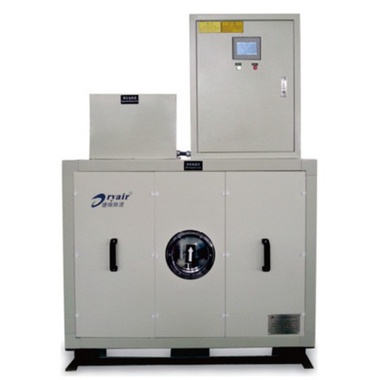

Dryair ZC series desiccant dehumidifiers are designed to efficiently make the air to low moisture levels from 10%RH-40%RH. Process airflows are available form 300 to 30000 CFM. Unit casing is manufactured of high intensity and Anti-cold bridge aluminum alloy or steel frame and polyurethane sandwich insulation panel to ensure zero air leakage. components like cooling and heating coils, filters or fans, etc. Pre-designed modules are available as part of our ZC plus product allowing Dryair to provide you with a turnkey solution to your humidity and temperature controlling requirement.

Dryair' ZC Plus add-on module provides additional process fan,filtration, cooling, heating and mixing functions that many end-users require. The add-on modules integrate readily as "bolt-on" housings in line with the other process air components. The arrangement is skid-mounted, providing the buyer with a single source, factory-assembled package.

It requires only utility hook-UPS, chiller/boiler piping, duct work connections and sensor-controller tie-ins on site. If a more complete system offering is required, with condensing unit, piping, integrated controls or other features, consult Dryair representatives or staff early in the proposal and design process for assistance in the equipment selection.

Standard components
Desiccant rotor
Reactivation fan/blower
Reactivation filter
Reactivation heater(electric or steam)
ECS control system

Advantages
Low profile cassette design
Quick access for easy maintenance
Easy duct connections
Modulating electric or steam reactivation
Multiple blower orientations
Built-in bypass option
Add-on post-/pre-air treatment options
The electrical control system meets ISO9001 standard. PLC controlling system is optional for the units for easy operation and maintenance.; All controls are mounted in a NEMA 4 control enclosed environment.
The ZC series includes all components and controls to operate as a stand alone dehumidifier. Many times a ZC series dehumidifier is combined with other HVAC
