Refrigerated Air Dryer Advantages:

• Ripple pipelines of the heat exchanger increase the using rate of cooling air.
• Evaporator is made from laminose copper pipeline with aluminum flake, high efficiency and low energy consumption.
• Good drainage system, adopts 3 gardes for draining,drain out lots of condensate water and oil,so as to keep clean and dry compressed air.
• Easy for installation and free-maintenance.
• Condenser made from fin copper, good heat exchanging rate without freeze and jam.

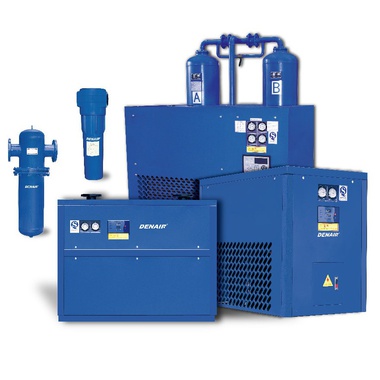

Refrigerated Air Dryer

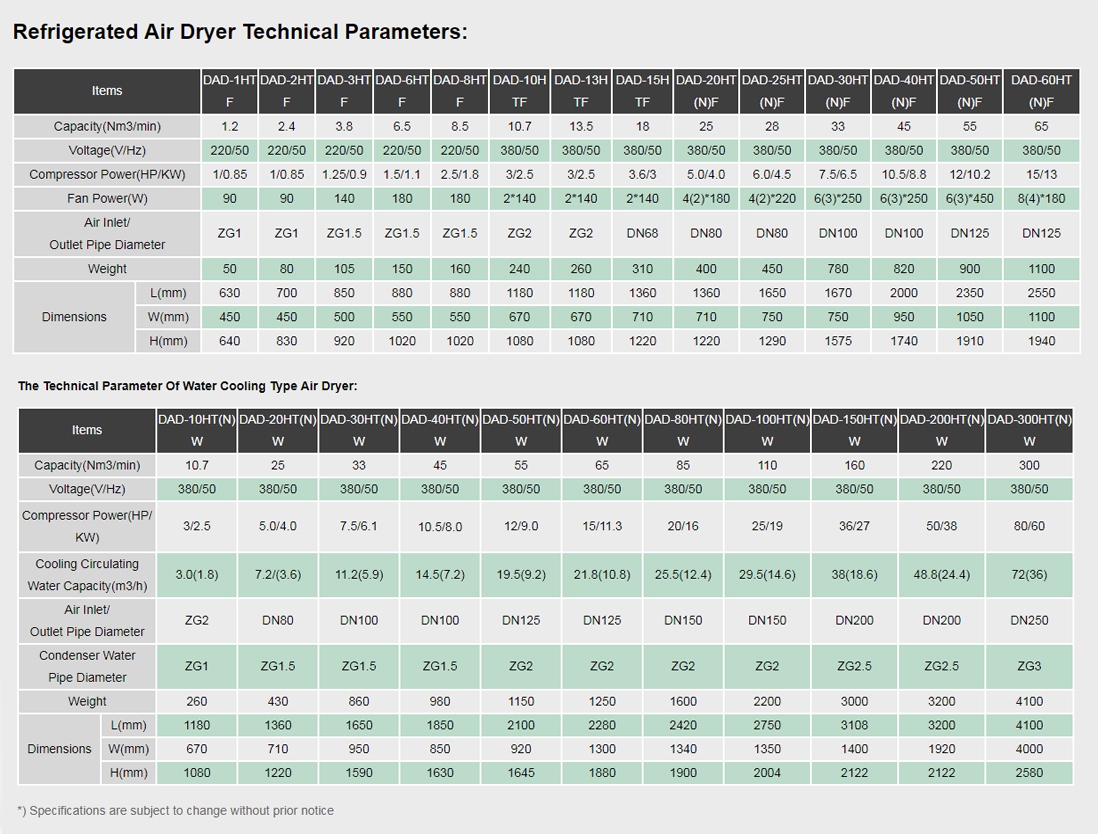

• Capacity:1.2-300               [Nm³/min]
• 42.37-10593                      [SCFM]
• 67.6-338                            [F]
• Pressure dew point: 2-10  [℃]
