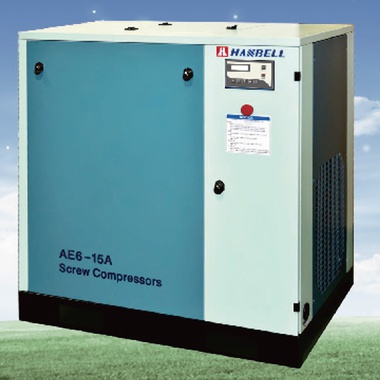

〖HANBELL〗AE6 Screw air compressor (belt-drive) series

AA level - industry pioneerbrand story
  • Shanghai Hanbell Precise Machinery Co., Ltd.

tp400-678-6995 / 021-59946780

Selection list
序号 采购操作
1
Related products



New Ideological Style
"slender styling","overall enclosure", easy maintenance","simple installation" reduces sound levels and save the space in job-site, to prevail any advanced air compressors characteristic existing in the world.

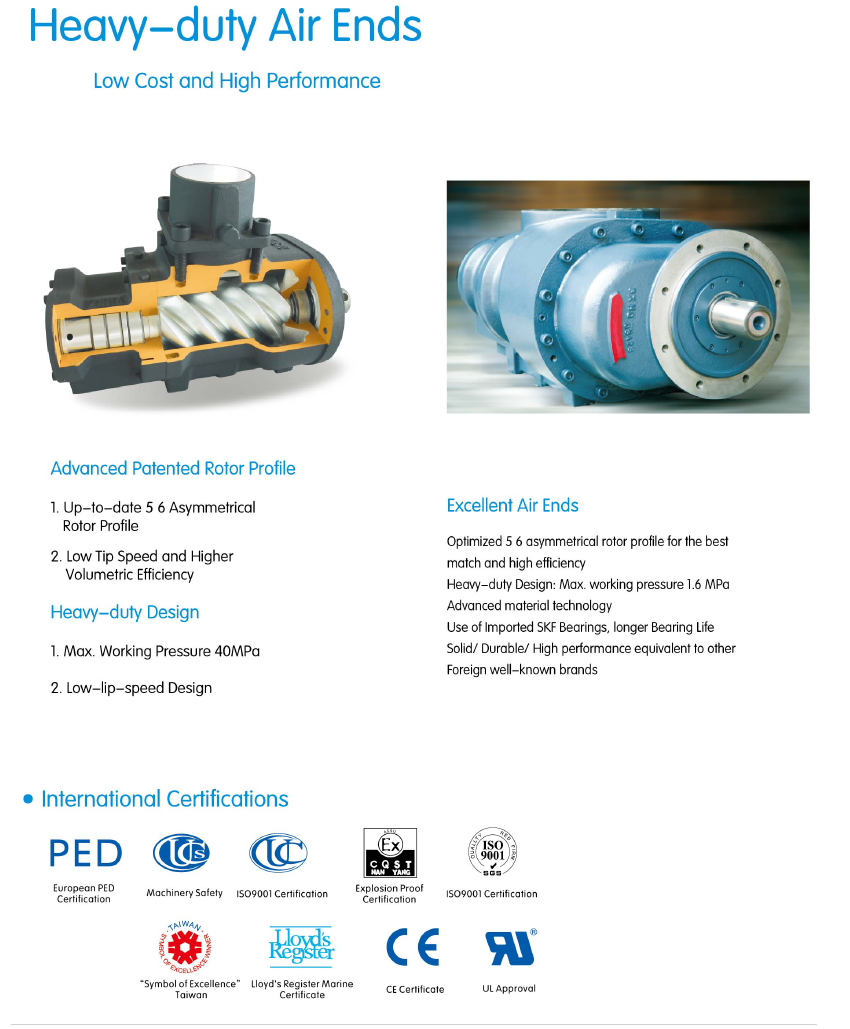

Advanced Patented Profile
The 3rd Generation of Alpha Symmetric 5 to 6 patented rotors profile are designed to operate at low tip speed with high volumetric efficiency, discharge pressure up to 1. 6 Mpa and generate low vibration.
Multi-protection Interlock
Micro computer controller equipped with pressure and temperature sensors provide diagnostics for additional protection of internal components, which enables to offer many alarm messages and many errors for protection.

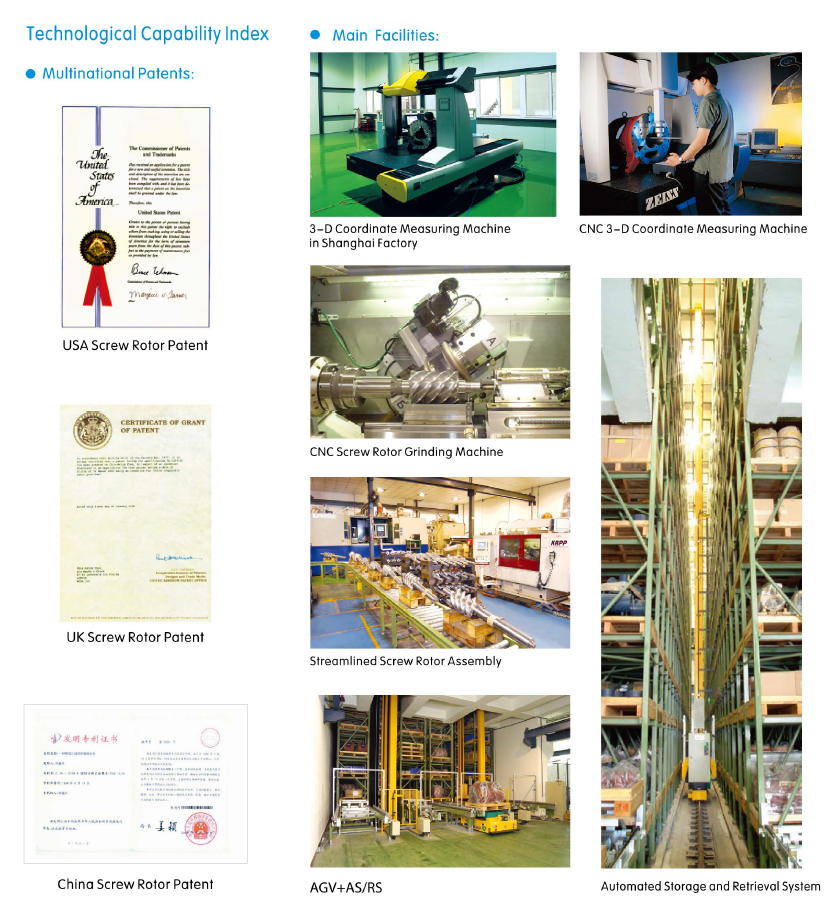

Quality Certification
Hanbell utilizes 3D measuring devices to strictly maintain high quality standards. Every Hanbell Compressor is well proven and fully tested prior to delivery.
High Rigidity Chassis
Rigid design structure allows for less vibration and low noise during compressor operation. Common base frame is designed for easy handling through forklift.

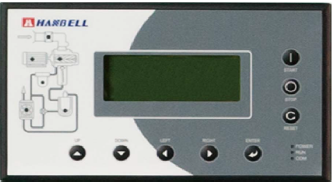

Intelligent control system
Intelligent monitoring provides the best service and the easiest maintenance. Master/Slave Interlock control is optional by customers' request ACMS remote monitoring system and moudbus function are also available.
Excellent cooling system
Use of fin-shaped structure and combination of oil cooler ofter-cooler result in compact size, higher efficiency in exchange, rustproof. The special design in lans angle leads to higher efficiency and lower noise: its better performance in heat dissipation effectively low running and discharge temperature on compressor air.
High-efficiency and energy-saving design
Use of imported volume control valve together with suction control system can control volume flow efficiently and adiust power consumption of air compressor.



Bigger sized and effective cooler
Hanbell compressor uses aluminium vaccum brazed coolers of sufficiently large size and multiple fins helps in effective heat dissipation. A further advantage of having bigger sized cooler is that it can operate with lower sized cooling fans.

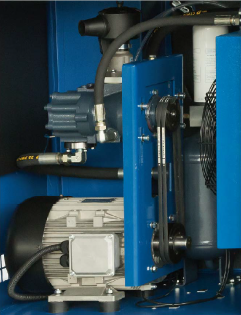

Belt tension design
Belt tension can be adjusted in free space.This design can save time spent in shutdown and labor during traditional replacement of belt.
Stainless steel tube design
Stainless steel tube has been widely used in piping design of Hanbell air compressor and effectively protects piping from rust. Its piping layout results in neat appearance and ease of maintenance.
